5. Source Code Management with Git¶
Daily development work on DIMS source code is done using a local server
accessed via SSH to git.devops.develop. The public release of DIMS
software will be from github.com/uw-dims with public
documentation delivered on ReadTheDocs. (DIMS documentation is covered in
Section Documenting DIMS Components.)
Note
At this point github.com/uw-dims primarily contains forked repositories of the software described in Section installingtools.
Team members need to have familiarity with a few general task sets, which are covered in the sections below. These tasks include things like:
- Cloning repositories and initializing them for use of the
hub-flowGit addon scripts. - On a daily basis, updating repositories, creating feature
or hotfix branches to work on projects, and finishing those branches after
testing is complete to merge them back into the
developbranch. - Creating new repositories, setting triggers for post-commit actions, and monitoring continuous integration results.
- Keeping up to date with new repositories (or starting fresh with a new development system by cloning all DIMS repositories a new.)
Attention
Every now and then, you may do something with Git and immediately think, “Oh, no! I did not want to do that...” :(
There are resources on Dave Dittrich’s home page in the dittrich:usinggit section. Two good resources for learning how things work with Git (and how to undo them) are:
- How to undo (almost) anything with Git, GitHub blog post by jaw6, June 8, 2015
- Undo Almost Anything with Git webinar, YouTube video by Peter Bell and Michael Smith, February 11, 2014
5.1. Foundational Git Resources¶
- Yan Pritzker’s Git Workflows book
- The Thing About Git
- Commit Often, Perfect Later, Publish Once: Git Best Practices
- Git Tips
- git-flow utilities to follow Vincent Dreisen branching workflow
- HubFlow (GitFlow for GitHub)
5.2. The need for policy and discipline¶
Git is a great tool for source management, but can be a little tricky to use
when there is a team of programmers all using Git in slightly different ways.
Bad habits are easy to form, like the short-cut of working on the develop
branch in a multi-branch workflow.

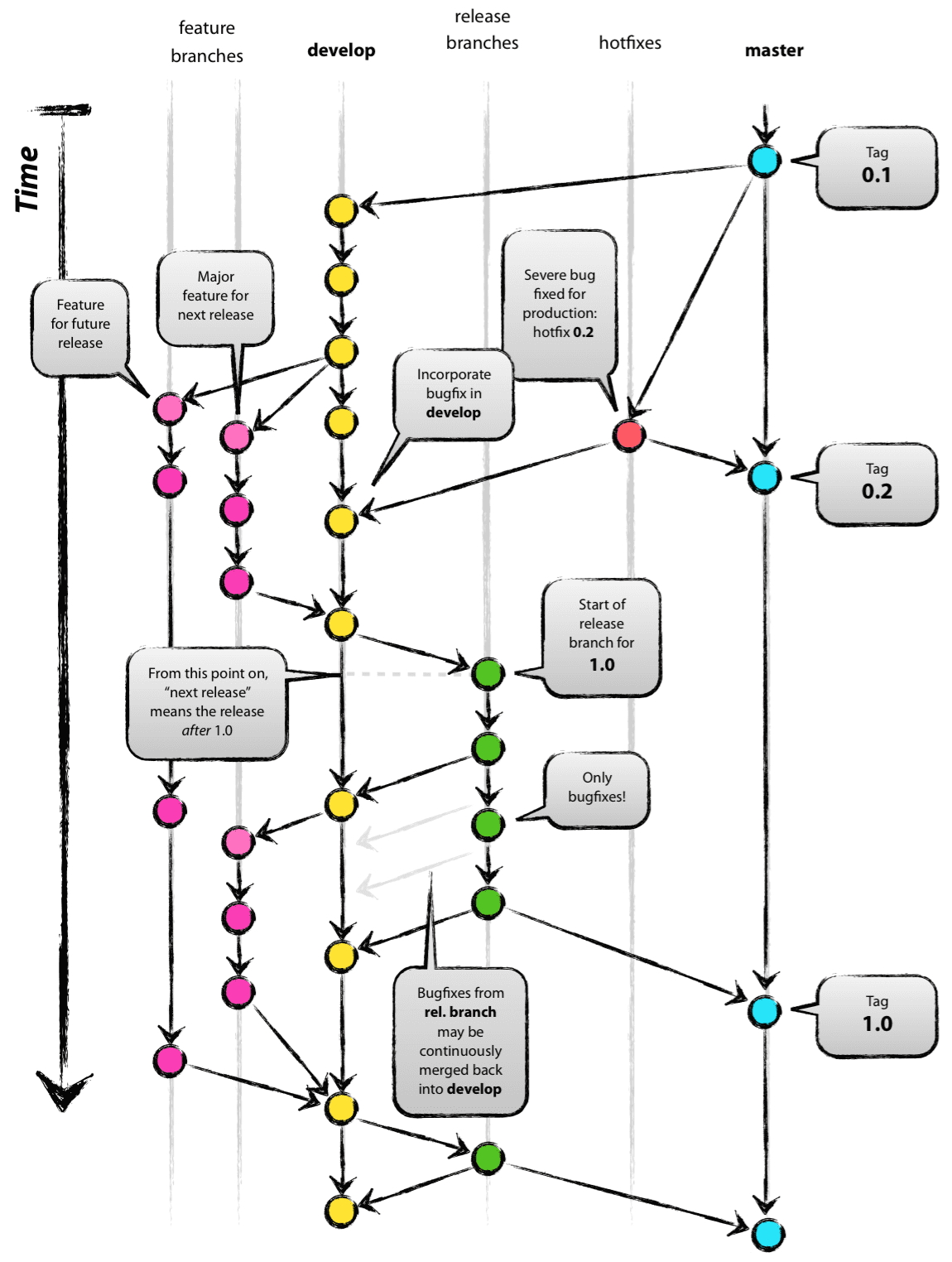

Figure Vincent Driessen Git branching model comes from Vincent Driessen’s “A successful Git branching model”. The DIMS project is following this model as best we can to maintain consistency in how we create and use branches. The general policy is to derive branch names from Jira tickets, in order to keep information about why the branch exists, who is responsible for working on it, and what is supposed to be done on the branch, in a system that can track progress and prioritization of activities within sprints.
Vincent Driessen Git branching model
Because public release of source code will be through GitHub,
the hubflow tool was chosen for use within the project.
Take a moment to read through the following Gist (original source:
bevanhunt/hubflow_workflow), just to get an overview of hubflow
concepts. This Gist provides an overview of hubflow branch concepts and
some other things about Git that are good to keep in mind, but this is not
the totality of information in this guide about using hubflow (keep reading
further down for more DIMS-specific examples of using hubflow commands).
Git Hubflow Workflow:
Sync Branch:
git hf update - this will update master and develop and sync remote branches withlocal ones (be sure not to put commits into develop or master as it will push these up)
git hf push - this will push your commits in your local branch to the matching remote branch
git hf pull - this will pull the remote commits into your local branch (don't use if the remote branch has been rebased - use git pull origin "your-branch" instead)
Feature Branch:
gif hf feature start "my-feature" - this will create a feature branch on origin and local will be based off the latest develop branch (make sure to git hf update before or you will get an error if local develop and remote develop have divereged)
git hf feature finish "my-feature" - this will delete the local and remote branches (only do this after a PR has been merged)
git hf feature cancel -f "my-feature" - this will delete the local and remote branches (only do this if the feature branch was created in error)
git hf feature checkout "my-feature" - this will checkout the feature branch
Hotfix Branch:
git hf hotfix start "release-version" - this will create a hotfix branch on origin and local will be based off the latest develop branch (make sure to git hf update before or you get an error if local develop and remote devleop have divereged)
git hf hotfix finish "release-version" - this will delete the local and remote branches and merge the commits of the hotfix branch into master and develop branches - it will also create a release tag that matches the release version on master
git hf hotfix cancel -f "release-version" - this will delete the remote and local branch (only do this if the hotfix was created in error)
git checkout hotfix/"release-version" - this will checkout the hotfix branch (make sure to git hf update first)
Release Branch:
git hf release start "release-version" - this will create a release branch on origin and local will be based off the latest develop branch (make sure to git hf update before or you get an error if local develop and remote devleop have divereged)
git hf release finish "release-version" - this will delete the local and remote branches and merge the commits of the release branch both into develop and master - it will also create a release tag that matches the release version on master
git hf release cancel -f "release-version" - this will delete the local and remote branch (only do this if the release was created in error)
git checkout release/"release-version" - this will checkout the release branch (make sure to git hf update first)
Preparing a PR:
- put the Aha! Ticket # in PR title with a description
- assign to the proper reviewer
- don't squash the commits until after reviewed
- after review - squash the commits
Squashing Commits:
- checkout the branch you want to squash
- git merge-base "my-branch" develop (returns merge-base-hash)
- git rebase -i "merge-base-hash"
- change all commit types to "squash" from "pick" in the text file (except first) & save file
- if you get a no-op message in the text file and still have multiple commits then use the command git rebase -i (without the hash)
- fix any merge conflicts
- you should have one commit
- force update your remote branch: git push origin "my-branch" -f
Resolving merge conflicts with the develop branch that are not squashing related (generally on PRs - auto-merge will show as disabled):
- git hf update
- git rebase develop (while in your branch)
- resolve any merge conflicts
Rules to remember:
- don't ever git merge branches together manually (should never run command - git merge)
- squash only after review and before merging PR into develop
Note
There is a large body of references on Git that are constantly being updated in the Software Development>Git section of Dave Dittrich’s web page.
Caution
Mac OS X (by default) uses a case insensitive HFS file system.
Unlike Ubuntu and other Linux/Unix distributions using case-sensitive
file systems like ext2, reiserfs, etc., the default OS X file
system does not care if you name a file THISFILE or ThisFile
or thisfile. All of those refer to the same file on a Mac. This can cause
problems when you use Git to share a source repository between computers
running OS X, Windows, and/or Linux, because what Linux thinks are two
files, the Mac only thinks is one (and that really causes problems for Git).
See Git on Mac OS X: Don’t ignore case! and How do I commit case-sensitive only filename changes in Git?. A solution for Mac OS X, posted in Case sensitivity in Git, is documented in Section Using a Case-Sensitive sparse image on Mac OS X.
5.3. Global Git Configuration¶
As we learn about best practices, the following set of global configuration
settings will be updated. Refer back to this page, or look in the dims-git
repo, for the latest configuration examples.
The following are user-specific settings that you should alter for your own account and preferences of editor/merge method:
$ git config --global user.name "Dave Dittrich"
$ git config --global user.email "dittrich@u.washington.edu"
$ git config --global merge.tool vimdiff
$ git config --global core.editor vim
Caution
There is a bad side-effect of the way the initial common Git configuration
were managed using Ansible. Whenever the dims-users-create role was
played, a fresh copy of the user’s global Git configuration file
(~/.gitconfig) is created, over-writing whatever the user had created
by issuing the commands above and forcing the user to have to re-issue
those commands every time the play was run. (See the file
$GIT/ansible-playbooks/dims-users-create/templates/gitconfig.j2).
That is a bug in that it is not idempotent.
One quick hack that restores these values is to add those commands to
your $HOME/.bash_aliases file, which is run every time a new
interactive Bash shell is started.
A better long-term solution, which we are working towards, is to
have the user.name and user.email configuration settings come
from the Trident portal user attributes table, so they can be
set by the user and stored in one central location, which can then be
retreived from the Trident user database and applied consistently
by Ansible when it sets up user accounts.
The following are general and can be applied to anyone’s configuration (included here without a prompt so you can cut/paste to a command line):
git config --global push.default tracking
git config --global core.excludesfile ~/.gitignore_global
git config --global core.autocrlf false
git config --global color.diff auto
git config --global color.status auto
git config --global color.branch auto
git config --global color.interactive auto
git config --global color.ui auto
git config --global branch.autosetuprebase always
The following are convenience aliases that help with certain tasks:
git config --global alias.find 'log --color -p -S'
git config --global alias.stat 'status -s'
git config --global alias.unstage "reset HEAD --"
git config --global alias.uncommit "reset --soft HEAD^"
git config --global alias.gr 'log --full-history --decorate=short --all --color --graph'
git config --global alias.lg 'log --oneline --decorate=short --abbrev-commit --all --color --graph'
git config --global alias.log1 'log --oneline --decorate=short'
5.4. Daily tasks with Git¶
This section covers regular tasks that are performed to
work with source code using Git. This section assumes you are
using the hub flow tool described in Section installingtools.
Warning
These tools are being installed in the dimsenv Python virtual
environment to make it easier for everyone on the team to access them and to
stay up to date with instructions in this document. If you have any
problems, file a Jira ticket or talk
to Dave immediately upon encountering a problem. Do not let yourself get
blocked on something and block everyone else as a result!
5.4.1. Updating local repos¶
The most common task you need to do is keep your local Git repos up to date
with the code that others have pushed to remote repositories for sharing.
With several dozen individual Git repos, keeping your system up to date
with all of these frequently changing repos using git commands alone
is difficult.
To make things easier, helper programs like the hubflow scripts
and mr can be used, but even those programs have their limits.
The preferred method of updating the larger set of DIMS Git repos
is to use dims.git.syncrepos, which in turn calls hubflow via
mr as part of its processing. This convenience script (described in
Section Updating with dims.git.syncrepos) works on many repos at once, saving time and
effort.
You should still learn how hubflow and mr work, since you will
need to use them to update individual Git repos when you are working within
those repos, so we will start with those tools.
5.4.1.1. Updating using hubflow¶
The following command ensures that a local repo you are working on is up to date:
Note
The list of actions that are performed is provided at the end of the command output. This will remind you of what all is happening under the hood of Hub Flow and is well worth taking a few seconds of your attention.
$ git hf update
Fetching origin
remote: Counting objects: 187, done.
remote: Compressing objects: 100% (143/143), done.
remote: Total 165 (delta 56), reused 1 (delta 0)
Receiving objects: 100% (165/165), 31.78 KiB | 0 bytes/s, done.
Resolving deltas: 100% (56/56), completed with 13 local objects.
From git.devops.develop:/opt/git/ansible-playbooks
001ba47..0e12ec3 develop -> origin/develop
* [new branch] feature/dims-334 -> origin/feature/dims-334
Updating 001ba47..0e12ec3
Fast-forward
docs/source/conf.py | 2 +-
roles/dims-ci-utils-deploy/tasks/main.yml | 5 +++++
2 files changed, 6 insertions(+), 1 deletion(-)
Summary of actions:
- Any changes to branches at origin have been downloaded to your local repository
- Any branches that have been deleted at origin have also been deleted from your local repository
- Any changes from origin/master have been merged into branch 'master'
- Any changes from origin/develop have been merged into branch 'develop'
- Any resolved merge conflicts have been pushed back to origin
- You are now on branch 'develop'
If a branch existed on the remote repo (e.g., the feature/eliot branch used
in testing), it would be deleted:
$ git branch -a
* develop
master
remotes/origin/develop
remotes/origin/feature/eliot
remotes/origin/master
$ git hf update
Fetching origin
From git.devops.develop:/opt/git/dims-asbuilt
x [deleted] (none) -> origin/feature/eliot
Summary of actions:
- Any changes to branches at origin have been downloaded to your local repository
- Any branches that have been deleted at origin have also been deleted from your local repository
- Any changes from origin/master have been merged into branch 'master'
- Any changes from origin/develop have been merged into branch 'develop'
- Any resolved merge conflicts have been pushed back to origin
- You are now on branch 'develop'
$ git branch -a
* develop
master
remotes/origin/develop
remotes/origin/master
While using git hf update && git hf pull seems like it is simple enough,
the DIMS project has several dozen repos, many of which are inter-related.
Keeping them all up to date is not simple, and because of this developers
often get far out of sync with the rest of the team.
5.4.1.2. Updating using the mr command¶
A useful tool for managing multiple Git repositories and keeping them in sync with the master branches is to use the program mr.
mr uses a configuration file that can be added to using mr register
within a repo, or by editing/writing the .mrconfig file directly.
Attention
These instructions assume the reader is not already using mr
on a regular basis. Additionally, all DIMS Git repos are assumed
to be segrated into their own directory tree apart from any other
Git repos that the developer may be using.
This assumption allows for use of a .mrconfig file specifically for
just DIMS source code that can be over-written entirely with DIMS-specific
settings.
Cloning all of the DIMS source repos at once, or getting the contents of
what should be an up-to-date .mrconfig file, is covered in the Section
Cloning multiple repos from git.devops.develop.
After all repos have been cloned, they can be kept up to date on a daily basis. Start your work session with the following commands:
$ cd $GIT
$ mr update
Caution
If you do not update a repo before attempting to git hf push or
git hf update with commited changes, Git will do a pull
and potentially you will end up with at best a merge, and at
worst a merge conflict that you must resolve before the push can
complete. If you are not comfortable handling a merge conflict, talk
to another team member to get help.
5.4.1.3. Updating with dims.git.syncrepos¶
A script that combines several of the above steps into one single command
is dims.git.synrepos.
[dimsenv] dittrich@dimsdemo1:~ () $ dims.git.syncrepos --version
dims.git.syncrepos version 1.6.97
In the example here, highlighted lines show
where repos are dirty (Repo[9], Repo[13], and Repo[33]), meaning they have
tracked files that are not committed yet and cannot be updated, clean and
requiring updates from the remote repo (Repo[12]), and new repositories from
the remote server (Repo[28] and Repo[30]) that are being cloned and initialized
for use with hub-flow tools. At the end, dims.git.syncrepos reports
how many repos were updated out of the available repos on the remote
server, how many new repos it added, and/or how many repos could not be
updated because they are dirty. Lastly, it reports how long it took (so
you can be aware of how long you have to go get coffee after
starting a sync.)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 | [dimsenv] dittrich@dimsdemo1:~ () $ dims.git.syncrepos
[+++] Found 46 available repos at git@git.devops.develop
[+++] Repo[1] "/home/dittrich/dims/git/ansible-inventory" clean:
[+++] Repo[2] "/home/dittrich/dims/git/ansible-playbooks" clean:
[+++] Repo[3] "/home/dittrich/dims/git/cif-client" clean:
[+++] Repo[4] "/home/dittrich/dims/git/cif-java" clean:
[+++] Repo[5] "/home/dittrich/dims/git/configs" clean:
[+++] Repo[6] "/home/dittrich/dims/git/dims" clean:
[+++] Repo[7] "/home/dittrich/dims/git/dims-ad" clean:
[+++] Repo[8] "/home/dittrich/dims/git/dims-asbuilt" clean:
[---] Repo[9] "/home/dittrich/dims/git/dims-ci-utils" is dirty:
?? dims/diffs.1
?? dims/manifest.dat
?? ubuntu-14.04.2/ubuntu-14.04.3-install.dd.bz2
4bb5516 (feature/dims-406) Merge branch 'develop' into feature/dims-406
[+++] Repo[10] "/home/dittrich/dims/git/dims-dashboard" clean:
[+++] Repo[11] "/home/dittrich/dims/git/dims-db-recovery" clean:
[+++] Repo[12] "/home/dittrich/dims/git/dims-devguide" clean:
remote: Counting objects: 29, done.
remote: Compressing objects: 100% (22/22), done.
remote: Total 22 (delta 13), reused 0 (delta 0)
Unpacking objects: 100% (22/22), done.
From git.devops.develop:/opt/git/dims-devguide
daffa68..4b2462b develop -> origin/develop
Updating daffa68..4b2462b
Fast-forward
.bumpversion.cfg | 2 +-
docs/source/conf.py | 4 ++--
docs/source/deployconfigure.rst | 2 +-
docs/source/referenceddocs.rst | 13 +++++++++++++
4 files changed, 17 insertions(+), 4 deletions(-)
[---] Repo[13] "/home/dittrich/dims/git/dims-dockerfiles" is dirty:
8a47fca (HEAD -> develop) Bump version: 1.1.11 → 1.1.12
[+++] Repo[14] "/home/dittrich/dims/git/dims-dsdd" clean:
[+++] Repo[15] "/home/dittrich/dims/git/dims-jds" clean:
[+++] Repo[16] "/home/dittrich/dims/git/dims-keys" clean:
[+++] Repo[17] "/home/dittrich/dims/git/dims-ocd" clean:
[+++] Repo[18] "/home/dittrich/dims/git/dims-packer" clean:
[+++] Repo[19] "/home/dittrich/dims/git/dims-sample-data" clean:
[+++] Repo[20] "/home/dittrich/dims/git/dims-sr" clean:
[+++] Repo[21] "/home/dittrich/dims/git/dims-supervisor" clean:
[+++] Repo[22] "/home/dittrich/dims/git/dims-svd" clean:
[+++] Repo[23] "/home/dittrich/dims/git/dimssysconfig" clean:
[+++] Repo[24] "/home/dittrich/dims/git/dims-tp" clean:
[+++] Repo[25] "/home/dittrich/dims/git/dims-tr" clean:
[+++] Repo[26] "/home/dittrich/dims/git/dims-vagrant" clean:
[+++] Repo[27] "/home/dittrich/dims/git/ELK" clean:
[+++] Adding Repo[28] fuse4j to /home/dittrich/dims/.mrconfig and checking it out.
mr checkout: /home/dittrich/dims/git/fuse4j
Cloning into 'fuse4j'...
remote: Counting objects: 523, done.
remote: Compressing objects: 100% (240/240), done.
remote: Total 523 (delta 186), reused 523 (delta 186)
Receiving objects: 100% (523/523), 180.86 KiB | 0 bytes/s, done.
Resolving deltas: 100% (186/186), done.
Checking connectivity... done.
Using default branch names.
Which branch should be used for tracking production releases?
- master
Branch name for production releases: [master]
Branch name for "next release" development: [develop]
How to name your supporting branch prefixes?
Feature branches? [feature/]
Release branches? [release/]
Hotfix branches? [hotfix/]
Support branches? [support/]
Version tag prefix? []
mr checkout: finished (1 ok; 43 skipped)
[+++] Repo[29] "/home/dittrich/dims/git/ipgrep" clean:
[+++] Adding Repo[30] java-native-loader to /home/dittrich/dims/.mrconfig and checking it out.
mr checkout: /home/dittrich/dims/git/java-native-loader
Cloning into 'java-native-loader'...
remote: Counting objects: 329, done.
remote: Compressing objects: 100% (143/143), done.
remote: Total 329 (delta 62), reused 329 (delta 62)
Receiving objects: 100% (329/329), 178.36 KiB | 0 bytes/s, done.
Resolving deltas: 100% (62/62), done.
Checking connectivity... done.
Using default branch names.
Which branch should be used for tracking production releases?
- master
Branch name for production releases: [master]
Branch name for "next release" development: [develop]
How to name your supporting branch prefixes?
Feature branches? [feature/]
Release branches? [release/]
Hotfix branches? [hotfix/]
Support branches? [support/]
Version tag prefix? []
mr checkout: finished (1 ok; 44 skipped)
[+++] Repo[31] "/home/dittrich/dims/git/java-stix-v1.1.1" clean:
[+++] Repo[32] "/home/dittrich/dims/git/mal4s" clean:
[---] Repo[33] "/home/dittrich/dims/git/MozDef" is dirty:
M docker/Dockerfile
M docker/Makefile
[+++] Repo[34] "/home/dittrich/dims/git/ops-trust-openid" clean:
[+++] Repo[35] "/home/dittrich/dims/git/ops-trust-portal" clean:
[+++] Repo[36] "/home/dittrich/dims/git/poster-deck-2014-noflow" clean:
[+++] Repo[37] "/home/dittrich/dims/git/prisem" clean:
[+++] Repo[38] "/home/dittrich/dims/git/prisem-replacement" clean:
[+++] Repo[39] "/home/dittrich/dims/git/pygraph" clean:
[+++] Repo[40] "/home/dittrich/dims/git/rwfind" clean:
[---] Repo[41] "/home/dittrich/dims/git/sphinx-autobuild" is clean:
[+++] Repo[42] "/home/dittrich/dims/git/stix-java" clean:
[+++] Repo[43] "/home/dittrich/dims/git/ticketing-redis" clean:
[+++] Repo[44] "/home/dittrich/dims/git/tsk4j" clean:
[+++] Repo[45] "/home/dittrich/dims/git/tupelo" clean:
[+++] Repo[46] "/home/dittrich/dims/git/umich-botnets" clean:
[+++] Updated 40 of 46 available repos.
[+++] Summary of actions for repos that were updated:
- Any changes to branches at origin have been downloaded to your local repository
- Any branches that have been deleted at origin have also been deleted from your local repository
- Any changes from origin/master have been merged into branch 'master'
- Any changes from origin/develop have been merged into branch 'develop'
- Any resolved merge conflicts have been pushed back to origin
[+++] Added 3 new repos: fuse4j java-native-loader tsk4j
[+++] Could not update 3 repos: dims-ci-utils dims-dockerfiles MozDef
[+++] Updating repos took 00:04:12
|
5.4.2. Finding Changes and Changed Files¶
When working with lots of branches, especially branches that last for a long time, it becomes difficult to find changes and changed files (and the commits that contain them), in order to ensure required changes are present on the branch you are working on.
Git has a command whatchanged that assists with this. (See the
git-whatchanged documentation.)
Say you are on a branch, and running a program that relies on an Ansible inventory file for obtaining a list of hosts. When the program is run, it appears to iterate over the group names, not host names as you expect:
$ test.vagrant.list --status
production: not_created
development: not_created
The reason for this is a missing :children modifier on the
names of a group that has sub-groups. You know this bug was
fixed, but which branch (or which commit) contains the fix?
Use git whatchanged and pass it the name of the file
that has the problem.
$ git whatchanged -- inventory/deployment/all
commit 963b006a7aceee21eb35da41546ae5da7596382e
Author: Dave Dittrich <dittrich@u.washington.edu>
Date: Wed Dec 14 23:07:37 2016 -0800
Add missing ":children" modifier
:100644 100644 d9918d0... 9ce596b... M v2/inventory/deployment/all
commit 00afbb5bfadc46ef9b5f253a13a6212cb3fca178
Author: Dave Dittrich <dittrich@u.washington.edu>
Date: Sun Dec 11 21:31:04 2016 -0800
Update and normalize inventory 'all' files with children groups
:100644 100644 99bb8d9... d9918d0... M v2/inventory/deployment/all
commit 777cce71f944650c0ff5cf47723ee6b9f322c987
Author: Dave Dittrich <dittrich@u.washington.edu>
Date: Sat Dec 3 21:33:38 2016 -0800
Refactor inventory directories to use group vars properly
:100644 100644 98376da... 99bb8d9... M v2/inventory/deployment/all
commit 3cdb37d04c9d8bedb5277ad4cfbeafdec55f69b0
Author: Dave Dittrich <dittrich@u.washington.edu>
Date: Tue Nov 22 20:00:19 2016 -0800
Add vagrants to local and deployment groups
:100644 100644 b199ae1... 98376da... M v2/inventory/deployment/all
commit 92eec6c03c28824725b9fc0c4560b4fdccfa880e
Author: Dave Dittrich <dittrich@u.washington.edu>
Date: Fri Nov 18 16:53:04 2016 -0800
Add initial inventory for deployment to get dynamic inventory working
:000000 100644 0000000... b199ae1... A v2/inventory/deployment/all
If you add the --patch option, you also see the changes themselves
and can identify the initial problem file as well as the commit
that contains the fix (output edited for brevity):
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 | $ git whatchanged --patch -- inventory/deployment/all
commit 963b006a7aceee21eb35da41546ae5da7596382e
Author: Dave Dittrich <dittrich@u.washington.edu>
Date: Wed Dec 14 23:07:37 2016 -0800
Add missing ":children" modifier
diff --git a/v2/inventory/deployment/all b/v2/inventory/ectf/all
index d9918d0..9ce596b 100644
--- a/v2/inventory/deployment/all
+++ b/v2/inventory/deployment/all
@@ -27,7 +27,7 @@ red.devops.deployment
yellow.devops.deployment
# Hosts are Vagrant virtual machines
-[vagrants]
+[vagrants:children]
production
development
commit 00afbb5bfadc46ef9b5f253a13a6212cb3fca178
Author: Dave Dittrich <dittrich@u.washington.edu>
Date: Sun Dec 11 21:31:04 2016 -0800
Update and normalize inventory 'all' files with children groups
diff --git a/v2/inventory/deployment/all b/v2/inventory/ectf/all
index 99bb8d9..d9918d0 100644
--- a/v2/inventory/deployment/all
+++ b/v2/inventory/deployment/all
. . .
[manager]
core-[01:03].devops.deployment
+[worker]
+red.devops.deployment
+yellow.devops.deployment
+
# Hosts are Vagrant virtual machines
[vagrants]
+production
+development
+
+[production]
red.devops.deployment
core-[01:03].devops.deployment
yellow.devops.deployment
-blue16.devops.deployment
+
+[development]
blue14.devops.deployment
-green.devops.deployment
. . .
|
You can now git cherry-pick the commit with the fix
(963b006a7aceee21eb35da41546ae5da7596382e) and move on:
$ test.vagrant.list --status
red: saved
core-01: not_created
core-02: not_created
core-03: not_created
yellow: saved
blue14: not_created
5.4.3. Managing Version Numbers¶
The DIMS project uses the Python program bumpversion to update version numbers in Git repositories, following PEP 440 – Version Identification and Dependency Specification. You can learn how bumpversion works from these resources:
- bumpversion screencast showing bumpversion in action
- A Python Versioning Workflow With Bumpversion
Note
You can find examples of using bumpversion (including its configuration file
.bumpversion.cfg and how it is used to manage version numbers in files) in
this document in Section Cherry-picking a commit from one branch to another.
The program bumpversion is included in the Python virtual environment
dimsenv that is created for use in DIMS development.
[dimsenv] dittrich@27b:~/git/homepage (develop*) $ which bumpversion
/Users/dittrich/dims/envs/dimsenv/bin/bumpversion
Caution
Because you must be in the same directory as the .bumpversion.cfg file
when you invoke bumpversion, it is sometimes problematic when using it
to work in a sub-directory one or more levels below the configuration file.
You may see example command lines like (cd ..; bumpversion patch) that
use sub-shells to temporarily change to the right directory, do the
bumpversion patch, then exit leaving you in the same directory where you
are editing files. That is a little more work than is desirable, but
doing a bunch of cd .., bumpersion patch, cd backagain
is even more work.
To make it easier to increment version numbers, a helper
script dims.bumpversion is available as well:
[dimsenv] dittrich@27b:~/git/homepage (develop*) $ which dims.bumpversion
/Users/dittrich/dims/envs/dimsenv/bin/dims.bumpversion
[dimsenv] dittrich@27b:~/git/homepage (develop*) $ dims.bumpversion --help
Usage:
/Users/dittrich/dims/envs/dimsenv/bin/dims.bumpversion [options] [args]
Use "/Users/dittrich/dims/envs/dimsenv/bin/dims.bumpversion --help" to see options.
Use "/Users/dittrich/dims/envs/dimsenv/bin/dims.bumpversion --usage" to see help on "bumpversion" itself.
/Users/dittrich/dims/envs/dimsenv/bin/dims.bumpversion -- [bumpversion_options] [bumpversion_args]
Follow this second usage example and put -- before any bumpversion
options and arguments to pass them on bumpversion (rather than
process them as though they were /Users/dittrich/dims/envs/dimsenv/bin/dims.bumpversion arguments.) After
all, /Users/dittrich/dims/envs/dimsenv/bin/dims.bumpversion is just a shell wrapping bumpversion.
Options:
-h, --help show this help message and exit
-d, --debug Enable debugging
-u, --usage Print usage information.
-v, --verbose Be verbose (on stdout) about what is happening.
The default when you just invoke dims.bumpversion is to do bumpversion patch,
the most frequent version increment. To use a different increment, just add it as
an argument on the command line (e.g., dims.bumpvesion minor).
Here is an example of how this section edit was done, showing the version number increment in the workflow:
[dimsenv] dittrich@localhost:~/dims/git/dims-devguide/docs (develop*) $ git add source/sourcemanagement.rst
[dimsenv] dittrich@localhost:~/dims/git/dims-devguide/docs (develop*) $ git stat
M docs/source/sourcemanagement.rst
[dimsenv] dittrich@localhost:~/dims/git/dims-devguide/docs (develop*) $ git commit -m "Add subsection on version numbers and bumpversion/dims.bumpversion"
[develop b433bae] Add subsection on version numbers and bumpversion/dims.bumpversion
1 file changed, 92 insertions(+)
[dimsenv] dittrich@localhost:~/dims/git/dims-devguide/docs (develop*) $ dims.bumpversion
[dimsenv] dittrich@localhost:~/dims/git/dims-devguide/docs (develop*) $ git hf push
Fetching origin
Already up-to-date.
Counting objects: 11, done.
Delta compression using up to 8 threads.
Compressing objects: 100% (11/11), done.
Writing objects: 100% (11/11), 2.53 KiB | 0 bytes/s, done.
Total 11 (delta 7), reused 0 (delta 0)
remote: Running post-receive hook: Thu Oct 22 22:31:50 PDT 2015
remote: [+++] post-receive-06jenkinsalldocs started
remote: [+++] REPONAME=dims-devguide
remote: [+++] BRANCH=develop
remote: [+++] newrev=00727d53dbc8130cdbdbe35be80f1f4c2d2ee7fa
remote: [+++] oldrev=e8e7d4db40dd852a044525fdfbada1fe80d81739
remote: [+++] Branch was updated.
remote: [+++] This repo has a documentation directory.
remote: % Total % Received % Xferd Average Speed Time Time Time Current
remote: Dload Upload Total Spent Left Speed
remote: 100 79 0 0 100 79 0 2613 --:--:-- --:--:-- --:--:-- 3761
remote: % Total % Received % Xferd Average Speed Time Time Time Current
remote: Dload Upload Total Spent Left Speed
remote: 100 78 0 0 100 78 0 2524 --:--:-- --:--:-- --:--:-- 3250
remote: [+++] post-receive-06jenkinsalldocs finished
To git@git.devops.develop:/opt/git/dims-devguide.git
e8e7d4d..00727d5 develop -> develop
Summary of actions:
- The remote branch 'origin/develop' was updated with your changes
5.4.4. Initializing a repo for hub-flow¶
Every time you clone a new DIMS repo, it must be initialized with hub-flow
so that hub-flow commands work properly. Initialize your repo this way:
$ git clone git@git.devops.develop:/opt/git/dims-ad.git
Cloning into 'dims-ad'...
remote: Counting objects: 236, done.
remote: Compressing objects: 100% (155/155), done.
remote: Total 236 (delta 117), reused 159 (delta 76)
Receiving objects: 100% (236/236), 26.20 MiB | 5.89 MiB/s, done.
Resolving deltas: 100% (117/117), done.
Checking connectivity... done.
$ cd dims-ad
$ git hf init
Using default branch names.
Which branch should be used for tracking production releases?
- master
Branch name for production releases: [master]
Branch name for "next release" development: [develop]
How to name your supporting branch prefixes?
Feature branches? [feature/]
Release branches? [release/]
Hotfix branches? [hotfix/]
Support branches? [support/]
Version tag prefix? []
After initializing hub-flow, there will be two new sections
in your .git/config file starting with hubflow:
$ cat .git/config
[core]
repositoryformatversion = 0
filemode = true
bare = false
logallrefupdates = true
ignorecase = true
precomposeunicode = true
[remote "origin"]
url = git@git.devops.develop:/opt/git/dims-ad.git
fetch = +refs/heads/*:refs/remotes/origin/*
[branch "master"]
remote = origin
merge = refs/heads/master
rebase = true
[hubflow "branch"]
master = master
develop = develop
[branch "develop"]
remote = origin
merge = refs/heads/develop
rebase = true
[hubflow "prefix"]
feature = feature/
release = release/
hotfix = hotfix/
support = support/
versiontag =
Note
A possible test for inclusion in the dims-ci-utils test suite would be
to check for the existance of the hubflow "branch" and hubflow
"prefix" sections.
These are automatically created when repos are checked out using the
dims.git.syncrepos script and/or methods involving mr described
in the following sections.
5.5. Infrequent tasks with Git¶
5.5.1. Cloning multiple repos from git.devops.develop¶
There are several dozen repositories on git.devops.develop
that contain DIMS-generated code, configuration files, and/or documentation,
but also local copies of Git repositories from other sources (some with
DIMS-related customizations).
To get a list of all repositories on git.devops.develop,
use the Git shell command list:
$ ssh git@git.devops.develop list
prisem-replacement.git
ELK.git
cif-java.git
cif-client.git
dims-ad.git
supervisor.git
dims-tr.git
lemonldap-ng.git
pygraph.git
parsons-docker.git
configs.git
poster-deck-2014-noflow.git
dims-keys.git
dims.git
dims-tp.git
ops-trust-portal.git
dimssysconfig.git
dims-dockerfiles.git
stix-java.git
ansible-playbooks.git
dims-dashboard.git
mal4s.git
dims-ocd.git
sphinx-autobuild.git
dims-devguide.git
dims-asbuilt.git
ticketing-redis.git
dims-sr.git
prisem.git
umich-botnets.git
dims-dsdd.git
dims-sample-data.git
packer.git
java-stix-v1.1.1.git
vagrant.git
dims-jds.git
ansible-inventory.git
ops-trust-openid.git
dims-coreos-vagrant.git
configstest.git
poster-deck-2014.git
rwfind.git
dims-ci-utils.git
ipgrep.git
tupelo.git
dims-opst-portal.git
lemonldap-dims.git
MozDef.git
tsk4j.git
dims-svd.git
To clone all of these repositories in a single step, there is
another Git shell command mrconfig that returns the contents
of a .mrconfig file (see man mr for more information).
Caution
To use a .mrconfig file in a an arbitrary directory, you
will need to add the directory path to this file to the ~/.mrtrust
file. In this example, we will clone repos into ~/dims/git by
placing the .mrconfig file in the ~/dims directory.
$ cat ~/.mrtrust
/Users/dittrich/dims/.mrconfig
/Users/dittrich/git/.mrconfig
If you are building a documentation set (i.e., a limited set of documentation-only
repositories that are cross-linked using the intersphinx extension to Sphinx
as described in Section Cross-referencing between documents with the sphinx.ext.intersphinx extension.
$ cd ~/dims
$ ssh git@git.devops.develop mrconfig dims-ad dims-sr dims-ocd
[git/dims-ad]
checkout = git clone 'git@git.devops.develop:/opt/git/dims-ad.git' 'dims-ad' &&
(cd dims-ad; git hf init)
show = git remote show origin
update = git hf update
pull = git hf update &&
git hf pull
stat = git status -s
[git/dims-sr]
checkout = git clone 'git@git.devops.develop:/opt/git/dims-sr.git' 'dims-sr' &&
(cd dims-sr; git hf init)
show = git remote show origin
update = git hf update
pull = git hf update &&
git hf pull
stat = git status -s
[git/dims-ocd]
checkout = git clone 'git@git.devops.develop:/opt/git/dims-ocd.git' 'dims-ocd' &&
(cd dims-ocd; git hf init)
show = git remote show origin
update = git hf update
pull = git hf update &&
git hf pull
stat = git status -s
$ ssh git@git.devops.develop mrconfig dims-ad dims-sr dims-ocd > .mrconfig
$ mr checkout
mr checkout: /Users/dittrich/dims/git/dims-ad
Cloning into 'dims-ad'...
remote: Counting objects: 518, done.
remote: Compressing objects: 100% (437/437), done.
remote: Total 518 (delta 308), reused 155 (delta 76)
Receiving objects: 100% (518/518), 27.88 MiB | 5.88 MiB/s, done.
Resolving deltas: 100% (308/308), done.
Checking connectivity... done.
Using default branch names.
Which branch should be used for tracking production releases?
- master
Branch name for production releases: [master]
Branch name for "next release" development: [develop]
How to name your supporting branch prefixes?
Feature branches? [feature/]
Release branches? [release/]
Hotfix branches? [hotfix/]
Support branches? [support/]
Version tag prefix? []
mr checkout: /Users/dittrich/dims/git/dims-ocd
Cloning into 'dims-ocd'...
remote: Counting objects: 474, done.
remote: Compressing objects: 100% (472/472), done.
remote: Total 474 (delta 288), reused 0 (delta 0)
Receiving objects: 100% (474/474), 14.51 MiB | 4.26 MiB/s, done.
Resolving deltas: 100% (288/288), done.
Checking connectivity... done.
Using default branch names.
Which branch should be used for tracking production releases?
- master
Branch name for production releases: [master]
Branch name for "next release" development: [develop]
How to name your supporting branch prefixes?
Feature branches? [feature/]
Release branches? [release/]
Hotfix branches? [hotfix/]
Support branches? [support/]
Version tag prefix? []
mr checkout: /Users/dittrich/dims/git/dims-sr
Cloning into 'dims-sr'...
remote: Counting objects: 450, done.
remote: Compressing objects: 100% (445/445), done.
remote: Total 450 (delta 285), reused 0 (delta 0)
Receiving objects: 100% (450/450), 498.20 KiB | 0 bytes/s, done.
Resolving deltas: 100% (285/285), done.
Checking connectivity... done.
Using default branch names.
Which branch should be used for tracking production releases?
- master
Branch name for production releases: [master]
Branch name for "next release" development: [develop]
How to name your supporting branch prefixes?
Feature branches? [feature/]
Release branches? [release/]
Hotfix branches? [hotfix/]
Support branches? [support/]
Version tag prefix? []
mr checkout: finished (3 ok)
$ mr stat
mr stat: /Users/dittrich/tmp/dims/git/dims-ad
mr stat: /Users/dittrich/tmp/dims/git/dims-ocd
mr stat: /Users/dittrich/tmp/dims/git/dims-sr
mr stat: finished (3 ok)
Note
The example just shown uses only three repos. If you do not specify
any repo names on the mrconfig Git shell command, it will return
the settings for all 50+ DIMS repos. You can then clone the entire
set of DIMS repositories with the same mr checkout command,
and update all of them at once with mr update.
5.5.2. Adding a newly-created repository¶
Until the dims.git.syncrepos script has a new feature added to it
to detect when a new repo exists on git.devops.develop that
does not have a local repo associated with it, you must do this yourself.
When someone uses the newrepo script to create a new repo on
git.devops.develop, you will need to get new .mrconfig
settings for that repo in order for dims.git.syncrepo to synchronize it.
If you have your $GIT environment variable pointing to a directory
that only has DIMS Git repos in it, you just need to create an updated
.mrconfig file.
Note
It is safest to get a new copy of the .mrconfig file contents
and save them to a temporary file that you can compare with the
current file to ensure you are getting just what you expect, and
only then over-writing the .mrconfig file with the new contents.
The steps are shown here:
$ cd $GIT/..
$ ssh git@git.devops.develop mrconfig > .mrconfig.new
$ diff .mrconfig .mrconfig.new
324a325,333
> [git/dims-db-recovery]
> checkout = git clone 'git@git.devops.develop:/opt/git/dims-db-recovery.git' 'dims-db-recovery' &&
> (cd dims-db-recovery; git hf init)
> show = git remote show origin
> update = git hf update
> pull = git hf update &&
> git hf pull
> stat = git status -s
>
$ mv .mrconfig.new .mrconfig
$ mr checkout
mr checkout: /Users/dittrich/dims/git/dims-db-recovery
Cloning into 'dims-db-recovery'...
remote: Counting objects: 351, done.
remote: Compressing objects: 100% (254/254), done.
remote: Total 351 (delta 63), reused 350 (delta 63)
Receiving objects: 100% (351/351), 7.60 MiB | 5.62 MiB/s, done.
Resolving deltas: 100% (63/63), done.
Checking connectivity... done.
Using default branch names.
Which branch should be used for tracking production releases?
- master
Branch name for production releases: [master]
Branch name for "next release" development: [develop]
How to name your supporting branch prefixes?
Feature branches? [feature/]
Release branches? [release/]
Hotfix branches? [hotfix/]
Support branches? [support/]
Version tag prefix? []
mr checkout: finished (1 ok; 43 skipped)
5.5.3. Creating Git repositories¶
As discussed in the introduction to this section, DIMS software
will be hosted on both a local server git.devops.develop
and from github.com/uw-dims. This section covers creation of
new repositories on both systems.
5.5.3.1. Creating repositories on GitHub¶
5.5.3.2. Setting up remote Git repositories on git.devops.develop¶
Before a repository can be shared between DIMS team members, a remote
repository must be set up on git.devops.develop for sharing.
The following is an example session creating a new repository named
dims-ocd for operational concept description (a.k.a., Concept of
Operations).
$ slogin git.devops.develop
Welcome to Ubuntu 12.04.5 LTS (GNU/Linux 3.13.0-43-generic x86_64)
[ ... ]
Last login: Sun Jan 11 12:04:36 2015 from lancaster.devops.develop
dittrich@jira:~$ sudo su - gituser
[sudo] password for dittrich:
git@jira:~$ cd /opt/git
git@jira:/opt/git$ newrepo dims-ocd.git
Initialized empty Git repository in /opt/git/dims-ocd.git/
git@jira:/opt/git$ echo "DIMS Operational Concept Description" > dims-ocd.git/description
git@jira:/opt/git$ tree dims-ocd.git
dims-ocd.git
├── branches
├── config
├── description
├── HEAD
├── hooks
│ ├── post-receive -> /opt/git/bin/post-receive
│ ├── post-receive-00logamqp -> /opt/git/bin/post-receive-00logamqp
│ └── post-receive-01email -> /opt/git/bin/post-receive-01email
├── info
│ └── exclude
├── objects
│ ├── info
│ └── pack
└── refs
├── heads
└── tags
9 directories, 7 files
As can be seen in the output of tree at the end, the steps above
only create post-receive hooks for logging to AMQP and sending
email when a git push is done. To add a Jenkins build hook, do
the following command as well:
git@jira:/opt/git$ ln -s /opt/git/bin/post-receive-02jenkins dims-ocd.git/hooks/post-receive-02jenkins
git@jira:/opt/git$ tree dims-ocd.git/hooks/
dims-ocd.git/hooks/
├── post-receive -> /opt/git/bin/post-receive
├── post-receive-00logamqp -> /opt/git/bin/post-receive-00logamqp
├── post-receive-01email -> /opt/git/bin/post-receive-01email
└── post-receive-02jenkins -> /opt/git/bin/post-receive-02jenkins
0 directories, 4 files
5.5.3.3. Setting up a local Git repository before pushing to remote¶
After setting up the remote repository, you should create the initial local repository. The basic steps are as follows:
- Create the new local repo directory.
- Populate the directory with the files you want in the repo.
- Add them to the repo.
- Commit the files with a comment
- Create an initial version tag.
- Set
remote.origin.urlto point to the remote repo. - Push the new repo to the remote repo.
- Push the tags to the remote repo.
Here is an edited transcript of performing the above tasks.
$ cd $GIT
$ mkdir dims-ocd
$ git init
Initialized empty Git repository in /Users/dittrich/git/.git/
[ ... prepare files ... ]
$ ls
MIL-STD-498-templates.pdf UW-logo.png conf.py newsystem.rst
Makefile _build currentsystem.rst notes.rst
OCD-DID.pdf _static impacts.rst operationalscenarios.rst
OCD.html _templates index.rst referenceddocs.rst
OCD.rst analysis.rst justifications.rst scope.rst
UW-logo-32x32.ico appendices.rst license.txt
$ rm OCD.rst
$ ls
MIL-STD-498-templates.pdf _build currentsystem.rst notes.rst
Makefile _static impacts.rst operationalscenarios.rst
OCD-DID.pdf _templates index.rst referenceddocs.rst
OCD.html analysis.rst justifications.rst scope.rst
UW-logo-32x32.ico appendices.rst license.txt
UW-logo.png conf.py newsystem.rst
$ git add .
$ git commit -m "Initial load of MIL-STD-498 template"
[master (root-commit) 39816fa] Initial load of MIL-STD-498 template
22 files changed, 1119 insertions(+)
create mode 100644 dims-ocd/MIL-STD-498-templates.pdf
create mode 100644 dims-ocd/Makefile
create mode 100644 dims-ocd/OCD-DID.pdf
create mode 100755 dims-ocd/OCD.html
create mode 100644 dims-ocd/UW-logo-32x32.ico
create mode 100644 dims-ocd/UW-logo.png
create mode 100644 dims-ocd/_build/.gitignore
create mode 100644 dims-ocd/_static/.gitignore
create mode 100644 dims-ocd/_templates/.gitignore
create mode 100644 dims-ocd/analysis.rst
create mode 100644 dims-ocd/appendices.rst
create mode 100644 dims-ocd/conf.py
create mode 100644 dims-ocd/currentsystem.rst
create mode 100644 dims-ocd/impacts.rst
create mode 100644 dims-ocd/index.rst
create mode 100644 dims-ocd/justifications.rst
create mode 100644 dims-ocd/license.txt
create mode 100644 dims-ocd/newsystem.rst
create mode 100644 dims-ocd/notes.rst
create mode 100644 dims-ocd/operationalscenarios.rst
create mode 100644 dims-ocd/referenceddocs.rst
create mode 100644 dims-ocd/scope.rst
$ git tag -a "2.0.0" -m "Initial template release"
$ git remote add origin git@git.devops.develop:/opt/git/dims-ocd.git
$ git push -u origin master
Counting objects: 24, done.
Delta compression using up to 8 threads.
Compressing objects: 100% (22/22), done.
Writing objects: 100% (24/24), 251.34 KiB | 0 bytes/s, done.
Total 24 (delta 1), reused 0 (delta 0)
remote: Running post-receive hook: Thu Jan 15 20:46:33 PST 2015
To git@git.devops.develop:/opt/git/dims-ocd.git
* [new branch] master -> master
Branch master set up to track remote branch master from origin by rebasing.
$ git push origin --tags
Counting objects: 1, done.
Writing objects: 100% (1/1), 173 bytes | 0 bytes/s, done.
Total 1 (delta 0), reused 0 (delta 0)
remote: Running post-receive hook: Thu Jan 15 20:46:45 PST 2015
To git@git.devops.develop:/opt/git/dims-ocd.git
* [new tag] 2.0.0 -> 2.0.0
5.5.4. Cherry-picking a commit from one branch to another¶
There are times when you are working on one branch (e.g., feature/coreos)
and find that there is a bug due to a missing file. This file should be
on the develop branch from which this feature branch was forked, so
the solution is to fix the bug on the develop branch and also get
the fix on the feature branch.
As long as that change (e.g., an added file that does not exist on the branch)
has no chance of a conflict, a simple cherry-pick of the commit will get
things synchronized. Here is an example of the steps:
Let’s say the bug was discovered by noticing this error message shows up when
rendering a Sphinx document using sphinx-autobuild:
+--------- source/index.rst changed ---------------------------------------------
/Users/dittrich/git/dims-ci-utils/docs/source/lifecycle.rst:306: WARNING: External Graphviz file u'/Users/dittrich/git/dims-ci-utils/Makefile.dot' not found or reading it failed
+--------------------------------------------------------------------------------
The file Makefile.dot is not found. (The reason is that the
lifecycle.rst file was moved from a different place, but the
file it included was not.) We first stash our work (if necessary)
and check out the develop branch. Next, locate the missing file:
$ git checkout develop
Switched to branch 'develop'
Your branch is up-to-date with 'origin/develop'.
$ find ../.. -name 'Makefile.dot'
../../packer/Makefile.dot
We now copy the file to where we believe it should reside, and
to trigger a new sphinx-autobuild, we touch the file that
includes it:
$ cp ../../packer/Makefile.dot ..
$ touch source/lifecycle.rst
Switching to the sphinx-autobuild status window, we see the error
message has gone away.
+--------- source/lifecycle.rst changed -----------------------------------------
+--------------------------------------------------------------------------------
[I 150331 16:40:04 handlers:74] Reload 1 waiters: None
[I 150331 16:40:04 web:1825] 200 GET /lifecycle.html (127.0.0.1) 0.87ms
[I 150331 16:40:04 web:1825] 200 GET /_static/css/theme.css (127.0.0.1) 1.87ms
[I 150331 16:40:04 web:1825] 304 GET /livereload.js (127.0.0.1) 0.50ms
[I 150331 16:40:04 web:1825] 200 GET /_static/doctools.js (127.0.0.1) 0.43ms
[I 150331 16:40:04 web:1825] 200 GET /_static/jquery.js (127.0.0.1) 0.67ms
[I 150331 16:40:04 web:1825] 200 GET /_static/underscore.js (127.0.0.1) 0.48ms
[I 150331 16:40:04 web:1825] 200 GET /_static/js/theme.js (127.0.0.1) 0.40ms
[I 150331 16:40:04 web:1825] 200 GET /_images/virtual_machine_lifecycle_v2.jpeg (127.0.0.1) 4.61ms
[I 150331 16:40:04 web:1825] 200 GET /_images/whiteboard-lifecycle.png (127.0.0.1) 2.02ms
[I 150331 16:40:04 web:1825] 200 GET /_images/packer_diagram.png (127.0.0.1) 1.65ms
[I 150331 16:40:04 web:1825] 200 GET /_images/screenshot-lifecycle.png (127.0.0.1) 1.37ms
[I 150331 16:40:04 web:1825] 200 GET /_images/vm_org_chart.png (127.0.0.1) 0.70ms
[I 150331 16:40:04 web:1825] 200 GET /_images/graphviz-f8dca63773d709e39ae45240fc6b7ed94229eb74.png (127.0.0.1) 0.92ms
[I 150331 16:40:04 web:1825] 200 GET /_static/fonts/fontawesome-webfont.woff?v=4.0.3 (127.0.0.1) 0.55ms
[I 150331 16:40:05 handlers:109] Browser Connected: http://127.0.0.1:41013/lifecycle.html
Now we double-check to make sure we have the change we expect, add, and commit the fix:
$ git stat
?? Makefile.dot
$ git add ../Makefile.dot
$ git commit -m "Add Makefile.dot from packer repo for lifecycle.rst"
[develop d5a948e] Add Makefile.dot from packer repo for lifecycle.rst
1 file changed, 83 insertions(+)
create mode 100644 Makefile.dot
Make note of the commit that includes just the new file: commit d5a948e
in this case. Now you could bump the version if necessary before pushing.
$ (cd ..; bumpversion patch)
$ git hf push
Fetching origin
Already up-to-date.
Counting objects: 10, done.
Delta compression using up to 8 threads.
Compressing objects: 100% (10/10), done.
Writing objects: 100% (10/10), 783 bytes | 0 bytes/s, done.
Total 10 (delta 8), reused 0 (delta 0)
remote: Running post-receive hook: Tue Mar 31 17:02:43 PDT 2015
remote: Scheduled polling of dims-ci-utils-deploy-develop
remote: Scheduled polling of dims-ci-utils-deploy-master
remote: Scheduled polling of dims-seed-jobs
remote: No git consumers for URI git@git.devops.develop:/opt/git/dims-ci-utils.git
remote: [+++] post-receive-06jenkinsalldocs started
remote: [+++] REPONAME=dims-ci-utils
remote: [+++] BRANCH=develop
remote: [+++] newrev=a95c9e1356ff7c6aaed5bcdbe7b533ffc74b6cc1
remote: [+++] oldrev=d5a948ebef61da98b7849416ee340e0a4ba45a3a
remote: [+++] Branch was updated.
remote: [+++] This repo has a documentation directory.
remote: [+++] post-receive-06jenkinsalldocs finished
To git@git.devops.develop:/opt/git/dims-ci-utils.git
d5a948e..a95c9e1 develop -> develop
Summary of actions:
- The remote branch 'origin/develop' was updated with your changes
Now you can go back to the feature branch you were working on,
and cherry-pick the commit with the missing file.
$ git checkout feature/coreos
Switched to branch 'feature/coreos'
Your branch is ahead of 'origin/feature/coreos' by 1 commit.
(use "git push" to publish your local commits)
$ git cherry-pick d5a948e
[feature/coreos 14dbf59] Add Makefile.dot from packer repo for lifecycle.rst
Date: Tue Mar 31 16:38:03 2015 -0700
1 file changed, 83 insertions(+)
create mode 100644 Makefile.dot
$ git log
commit 14dbf59dff5d6fce51c899b32fef87276dbddef7
Author: Dave Dittrich <dave.dittrich@gmail.com>
Date: Tue Mar 31 16:38:03 2015 -0700
Add Makefile.dot from packer repo for lifecycle.rst
...
Note
Note that this results in a new commit hash on this branch
(in this case, 14dbf59dff5d6fce51c899b32fef87276dbddef7).
5.5.5. Synchronizing with an upstream repository¶
Note
The DIMS project is using forks of several source repositories, some for the sake of local customization, and some for adding features necessary for DIMS purposes. The MozDef project is one of these (see the dimsad:dimsarchitecturedesign document, Section dimsad:conceptofexecution).
To track another project’s Git repository, syncing it with a fork that you use locally, it is necessary to do the following:
Make sure that you have defined upstream properly, e.g.,
[dimsenv] ~/dims/git/MozDef (master) $ git remote -v origin git@git.devops.develop:/opt/git/MozDef.git (fetch) origin git@git.devops.develop:/opt/git/MozDef.git (push) upstream git@github.com:jeffbryner/MozDef.git (fetch) upstream git@github.com:jeffbryner/MozDef.git (push)Fetch the contents of the
upstreamremote repository:[dimsenv] ~/dims/git/MozDef (master) $ git fetch upstream remote: Counting objects: 6, done. remote: Total 6 (delta 2), reused 2 (delta 2), pack-reused 4 Unpacking objects: 100% (6/6), done. From github.com:jeffbryner/MozDef 700c1be..4575c0f master -> upstream/master * [new tag] v1.12 -> v1.12Checkout the branch to sync (e.g.,
master) and thenmergeany changes:[dimsenv] ~/dims/git/MozDef (master) $ git checkout master Already on 'master' Your branch is up-to-date with 'origin/master'. [dimsenv] ~/dims/git/MozDef (master) $ git merge upstream/master Merge made by the 'recursive' strategy. alerts/unauth_ssh_pyes.conf | 4 ++++ alerts/unauth_ssh_pyes.py | 78 ++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ 2 files changed, 82 insertions(+) create mode 100644 alerts/unauth_ssh_pyes.conf create mode 100644 alerts/unauth_ssh_pyes.py [dimsenv] ~/dims/git/MozDef (master) $ git push origin master Counting objects: 8, done. Delta compression using up to 8 threads. Compressing objects: 100% (8/8), done. Writing objects: 100% (8/8), 2.11 KiB | 0 bytes/s, done. Total 8 (delta 3), reused 0 (delta 0) remote: Running post-receive hook: Thu Sep 17 20:52:14 PDT 2015 To git@git.devops.develop:/opt/git/MozDef.git 180484a..766da56 master -> masterNow push the updated repository to the “local” remote repository (i.e,
git.devops.developfor the DIMS project):[dimsenv] ~/dims/git/MozDef (master) $ git push origin master Counting objects: 8, done. Delta compression using up to 8 threads. Compressing objects: 100% (8/8), done. Writing objects: 100% (8/8), 2.11 KiB | 0 bytes/s, done. Total 8 (delta 3), reused 0 (delta 0) remote: Running post-receive hook: Thu Sep 17 20:52:14 PDT 2015 To git@git.devops.develop:/opt/git/MozDef.git 180484a..766da56 master -> masterIf the remote repository is itself the fork (e.g., if you fork a repository on GitHub, then want to maintain a “local” remote repository on-site for your project, you may wish to use a label other than
upstreamto connote the fork differently):[dimsenv] ~/git/ansible (release1.8.4*) $ git remote -v davedittrich git@github.com:davedittrich/ansible.git (fetch) davedittrich git@github.com:davedittrich/ansible.git (push) origin https://github.com/ansible/ansible.git (fetch) origin https://github.com/ansible/ansible.git (push)
5.5.6. Starting a “release”¶
By convention, DIMS repositories have at least one file, named VERSION,
that contains the release version number. You can see the current release by
looking at the contents of this file.
$ cat VERSION
1.1.4
Note
There may be other files, such as the Sphinx documentation configuration
file, docs/source/conf.py usually, or other source files for Python
or Java builds. Each of the files that has a version/release number in
it must use the same string and be included in the .bumpversion.cfg
file in order for bumpversion to properly manage release numbers.
Now that you know what the current version number is, you can initiate
a release branch with hub-flow, knowing that the new numbr will be.
In this case, we will create a release branch 1.2.0 to increment
the minor version number component.
$ git hf release start 1.2.0
Fetching origin
Switched to a new branch 'release/1.2.0'
Total 0 (delta 0), reused 0 (delta 0)
remote: Running post-receive hook: Thu Jan 22 18:33:54 PST 2015
To git@git.devops.develop:/opt/git/ansible-playbooks.git
* [new branch] release/1.2.0 -> release/1.2.0
Summary of actions:
- A new branch 'release/1.2.0' was created, based on 'dev'
- The branch 'release/1.2.0' has been pushed up to 'origin/release/1.2.0'
- You are now on branch 'release/1.2.0'
Follow-up actions:
- Bump the version number now!
- Start committing last-minute fixes in preparing your release
- When done, run:
git hf release finish '1.2.0'
You should now be on the new release branch:
$
After making any textual changes, bump the version number to match the new release number:
$ bumpversion minor
Now the release can be finished. You will be placed in an editor to create comments for actions like merges and tags.
$ bumpversion minor
$ cat VERSION
1.2.0
$ git hf release finish '1.2.0'
Fetching origin
Fetching origin
Counting objects: 9, done.
Delta compression using up to 8 threads.
Compressing objects: 100% (8/8), done.
Writing objects: 100% (9/9), 690 bytes | 0 bytes/s, done.
Total 9 (delta 7), reused 0 (delta 0)
remote: Running post-receive hook: Thu Jan 22 18:37:24 PST 2015
To git@git.devops.develop:/opt/git/ansible-playbooks.git
3ac28a2..5ca145b release/1.2.0 -> release/1.2.0
Switched to branch 'master'
Your branch is up-to-date with 'origin/master'.
Removing roles/tomcat/tasks/main.yml
Removing roles/tomcat/handlers/main.yml
Removing roles/tomcat/defaults/main.yml
Removing roles/postgres/templates/pg_hba.conf.j2
Removing roles/postgres/files/schema.psql
Removing roles/ozone/files/postgresql-9.3-1102.jdbc41.jar
Auto-merging roles/logstash/files/demo.logstash.deleteESDB
Auto-merging roles/logstash/files/demo.logstash.addwebsense
Auto-merging roles/logstash/files/demo.logstash.addufw
Auto-merging roles/logstash/files/demo.logstash.addrpcflow
Auto-merging roles/logstash/files/demo.logstash.addcymru
[ ... ]
~
".git/MERGE_MSG" 7L, 280C written
Merge made by the 'recursive' strategy.
.bumpversion.cfg | 11 +
Makefile | 61 +-
VERSION | 1 +
configure-all.yml | 5 +-
dims-all-desktop.yml | 56 +
dims-all-server.yml | 125 ++
dims-cifv1-server.yml | 50 +
[...]
Release 1.2.0.
#
# Write a message for tag:
# 1.2.0
# Lines starting with '#' will be ignored.
[...]
~
".git/TAG_EDITMSG" 5L, 97C written
Switched to branch 'dev'
Your branch is up-to-date with 'origin/dev'.
Merge tag '1.2.0' into dev for
Merge tag '1.2.0' into dev for
Merge tag '1.2.0' into dev for Release 1.2.0.
# Please enter a commit message to explain why this merge is necessary,
# especially if it merges an updated upstream into a topic branch.
#
# Lines starting with '#' will be ignored, and an empty message aborts
# the commit.
[...]
".git/MERGE_MSG" 7L, 273C written
Merge made by the 'recursive' strategy.
.bumpversion.cfg | 2 +-
VERSION | 2 +-
docs/source/conf.py | 4 ++--
group_vars/all | 2 +-
4 files changed, 5 insertions(+), 5 deletions(-)
Deleted branch release/1.2.0 (was 5ca145b).
Counting objects: 2, done.
Delta compression using up to 8 threads.
Compressing objects: 100% (2/2), done.
Writing objects: 100% (2/2), 447 bytes | 0 bytes/s, done.
Total 2 (delta 0), reused 0 (delta 0)
remote: Running post-receive hook: Thu Jan 22 18:38:17 PST 2015
To git@git.devops.develop:/opt/git/ansible-playbooks.git
3ac28a2..aec921c dev -> dev
Total 0 (delta 0), reused 0 (delta 0)
remote: Running post-receive hook: Thu Jan 22 18:38:19 PST 2015
To git@git.devops.develop:/opt/git/ansible-playbooks.git
2afb58f..2482d07 master -> master
Counting objects: 1, done.
Writing objects: 100% (1/1), 166 bytes | 0 bytes/s, done.
Total 1 (delta 0), reused 0 (delta 0)
remote: Running post-receive hook: Thu Jan 22 18:38:25 PST 2015
To git@git.devops.develop:/opt/git/ansible-playbooks.git
* [new tag] 1.2.0 -> 1.2.0
remote: Running post-receive hook: Thu Jan 22 18:38:28 PST 2015
To git@git.devops.develop:/opt/git/ansible-playbooks.git
- [deleted] release/1.2.0
Summary of actions:
- Latest objects have been fetched from 'origin'
- Release branch has been merged into 'master'
- The release was tagged '1.2.0'
- Tag '1.2.0' has been back-merged into 'dev'
- Branch 'master' has been back-merged into 'dev'
- Release branch 'release/1.2.0' has been deleted
- 'dev', 'master' and tags have been pushed to 'origin'
- Release branch 'release/1.2.0' in 'origin' has been deleted.
Lastly, bump the patch version number in the dev branch to make sure
that when something reports the version in developmental code builds, it
doesn’t look like you are using code from the last tagged master
branch. That completely defeats the purpose of using version numbers for
dependency checks or debugging.
$ bumpversion patch
$ git push
Counting objects: 9, done.
Delta compression using up to 8 threads.
Compressing objects: 100% (8/8), done.
Writing objects: 100% (9/9), 683 bytes | 0 bytes/s, done.
Total 9 (delta 7), reused 0 (delta 0)
remote: Running post-receive hook: Thu Jan 22 18:51:00 PST 2015
To git@git.devops.develop:/opt/git/ansible-playbooks.git
aec921c..d4fe053 dev -> dev
Figure New 1.2.0 release on master, dev now on 1.2.1. shows what the branches look like with GitX.app on a Mac:
New 1.2.0 release on master, dev now on 1.2.1.
5.5.7. Branch Renaming¶
Several of the git repos comprising the DIMS source code management
system are using the name dev for the main development branch. The
(somewhat) accepted name for the development branch is develop, as detailed
in e.g. http://nvie.com/posts/a-successful-git-branching-model/.
We would therefore like to rename any dev branch to develop throughout our git repo set. This will of course impact team members who use the central repos to share work. Research online suggests that branch renaming can be done. The best source found was https://gist.github.com/lttlrck/9628955, who suggested a three-part operation
# Rename branch locally
git branch -m old_branch new_branch
# Delete the old branch
git push origin :old_branch
# Push the new branch, set local branch to track the new remote
git push --set-upstream origin new_branch
To test this recipe out without impacting any existing repos and therefore avoiding any possible loss of real work, we constructed a test situation with a central repo and two fake ‘users’ who both push and pull from that repo. A branch rename is then done, following the recipe above. The impact on each of the two users is noted.
First, we create a bare repo. This will mimic our authoratitive repos
on git.devops.develop. We’ll call this repo dims-328.git, named after the DIMS
Jira ticket created to study the branch rename issue:
$ cd
$ mkdir depot
$ cd depot
$ git init --bare dims-328.git
Next, we clone this repo a first time, which simulates the first ‘user’ (replace /home/stuart/ with your local path):
$ cd
$ mkdir scratch
$ cd scratch
$ git clone file:///home/stuart/depot/dims-328.git
Next, we dd some content in master branch
$ cd dims-328
$ echo content > foo
$ git add foo
$ git commit -m "msg"
$ git push origin master
We now clone the ‘depot’ repo a second time, to simulate the second
user. Both users are then developing using the authoratitive repo as
the avenue to share work. Notice how the second user clones into the
specified directory dims-328-2, so as not to tread on the first user’s
work:
$ cd ~/scratch
$ git clone file:///home/stuart/depot/dims-328.git dims-328-2
user1 (first clone) then creates a dev branch and adds some content to
it:
$ cd ~/scratch/dims-328
$ git branch dev
$ git checkout dev
$ echo content > devbranch
$ git add devbranch
$ git commit -m "added content to dev branch"
$ git push origin dev
This will create a dev branch in the origin repo, i.e the depot.
Next, as the second user, pull the changes, checkout dev and edit:
$ cd ~scratch/dims-328-2
$ git pull
$ git checkout dev
$ echo foo >> devbranch
At this point we have two ‘users’ with local repos, both of which share a common upstream repo. Both users have got the dev branch checked out, and may have local changes on that branch.
Now, we wish to rename the branch dev to develop throughout, i.e. at
the depot and in users’ repos.
Using instructions from https://gist.github.com/lttlrck/9628955, and noting the impacts to each user, we first act as user1, who will be deemed ‘in charge’ of the renaming process:
$ cd ~scratch/dims-328
$ git branch -m dev develop
$ git push origin :dev
To file:///home/stuart/depot/dims-328.git
- [deleted] dev
$ git push --set-upstream origin develop
Counting objects: 2, done.
Delta compression using up to 8 threads.
Compressing objects: 100% (2/2), done.
Writing objects: 100% (2/2), 259 bytes | 0 bytes/s, done.
Total 2 (delta 0), reused 0 (delta 0)
To file:///home/stuart/depot/dims-328.git
* [new branch] develop -> develop
Branch develop set up to track remote branch develop from origin.
Warning
(This reads like a ..warning block. Is that how it was meant?)
The git push output message implies a deletion of the dev branch in
the depot. If user2 were to interact with origin/dev now, what would
happen??
Here are the contents of user1‘s .git/config after the 3-operation
rename:
$ cat .git/config
[core]
repositoryformatversion = 0
filemode = true
bare = false
logallrefupdates = true
[remote "origin"]
url = file:///home/stuart/depot/dims-328.git
fetch = +refs/heads/*:refs/remotes/origin/*
[branch "master"]
remote = origin
merge = refs/heads/master
[branch "develop"]
remote = origin
merge = refs/heads/develop
Note how there are references to develop but none to dev. As far as
user1 is concerned, the branch rename appears to have worked and is complete.
Now, what does user2 see? With dev branch checked out, and with a
local mod, we do a pull:
$ cd ~scratch/dims-328-2
$ git pull
From file:///home/stuart/depot/dims-328
* [new branch] develop -> origin/develop
Your configuration specifies to merge with the ref 'dev'
from the remote, but no such ref was fetched.
This is some form of error message. user2‘s .git/config at this
point is this:
$ cat .git/config
[core]
repositoryformatversion = 0
filemode = true
bare = false
logallrefupdates = true
[remote "origin"]
url = file:///home/stuart/depot/dims-328.git
fetch = +refs/heads/*:refs/remotes/origin/*
[branch "master"]
remote = origin
merge = refs/heads/master
[branch "dev"]
remote = origin
merge = refs/heads/dev
Perhaps just the branch rename will work for user2? As user2, we do the first part of the rename recipe:
$ git branch -m dev develop
No errors from this, but user2‘s .git/config still refers to a
dev branch:
$ cat .git/config
[core]
repositoryformatversion = 0
filemode = true
bare = false
logallrefupdates = true
[remote "origin"]
url = file:///home/stuart/depot/dims-328.git
fetch = +refs/heads/*:refs/remotes/origin/*
[branch "master"]
remote = origin
merge = refs/heads/master
[branch "develop"]
remote = origin
merge = refs/heads/dev
Next, as user2, we issued the third part of the rename recipe (but skipped the second part):
$ git push --set-upstream origin develop
Branch develop set up to track remote branch develop from origin.
Everything up-to-date.
Note that this is a push, but since user2 had no committed changes
locally, no content was actually pushed.
Now user2‘s .git/config looks better, the token dev has changed to
develop:
$ cat .git/config
[core]
repositoryformatversion = 0
filemode = true
bare = false
logallrefupdates = true
[remote "origin"]
url = file:///home/stuart/depot/dims-328.git
fetch = +refs/heads/*:refs/remotes/origin/*
[branch "master"]
remote = origin
merge = refs/heads/master
[branch "develop"]
remote = origin
merge = refs/heads/develop
Next, as user2, commit the local change, and push to depot:
$ git add devbranch
$ git commit -m "msg"
$ git push
So it appears that user2 can issue just the branch rename and upstream
operation, and skip the second component of the 3-part recipe (git push
origin :old_branch), likely since this is an operation on the remote
(depot) itself and was already done by user1.
Finally, we switch back to user1 and pull changes made by user2:
$ cd ~scratch/dims-328
$ git pull
Warning
This has addressed only git changes. The wider implications of a git
branch rename on systems such as Jenkins has yet to be addressed. Since
systems like Jenkins generally just clone or pull from depots, it is
expected that only git URLs need to change from including dev to
develop.
5.5.8. Deleting accidentally created tags¶
When trying to finish a release, you may accidentally create a tag
named finish. It may even get propagated automatically to
origin, in which case it could propagate to others’ repos:
mr update: /Users/dittrich/dims/git/dims-keys
Fetching origin
From git.devops.develop:/opt/git/dims-keys
* [new tag] finish -> finish
You can delete them locally and remotely with the following commands:
$ git tag -d finish
Deleted tag 'finish' (was 516d9d2)
$ git push origin :refs/tags/finish
remote: Running post-receive hook: Thu Aug 6 16:07:17 PDT 2015
To git@git.devops.develop:/opt/git/dims-keys.git
- [deleted] finish
5.5.9. Recovering deleted files¶
Files that have been deleted in the past, and the deletions commited, can be recovered by searching the Git history of deletions to identify the commit that included the deletion. The file can then be checked out using the predecessor to that commit. See Find and restore a deleted file in a Git repository
5.5.10. Fixing comments in unpublished commits¶
Note
This section was derived from http://makandracards.com/makandra/868-change-commit-messages-of-past-git-commits
Warning
Only do this if you have not already pushed the changes!!
As noted in the git-commit man page for the --amend option:
You should understand the implications of rewriting history if you
amend a commit that has already been published. (See the "RECOVERING
FROM UPSTREAM REBASE" section in git-rebase(1).)
There may be times when you accidentally make multiple commits, one at a time, using the same comment (but the changes are not related to the comment).
Here is an example of three commits all made with git commit -am
using the same message:
$ git log
commit 08b888b9dd33f53f0e26d8ff8aab7309765ad0eb
Author: Dave Dittrich <dave.dittrich@gmail.com>
Date: Thu Apr 30 18:35:08 2015 -0700
Fix intersphinx links to use DOCSURL env variable
commit 7f3d0d8134c000a787aad83f2690808008ed1d96
Author: Dave Dittrich <dave.dittrich@gmail.com>
Date: Thu Apr 30 18:34:40 2015 -0700
Fix intersphinx links to use DOCSURL env variable
commit f6f5d868c8ddd12018ca662a54d1f58c150e6364
Author: Dave Dittrich <dave.dittrich@gmail.com>
Date: Thu Apr 30 18:33:59 2015 -0700
Fix intersphinx links to use DOCSURL env variable
commit 96575c967f606e2161033de92dd2dc580ad60a8b
Merge: 1253ea2 dae5aca
Author: Linda Parsons <lparsonstech@gmail.com>
Date: Thu Apr 30 14:00:49 2015 -0400
Merge remote-tracking branch 'origin/develop' into develop
commit 1253ea20bc553759c43d3a999b81be009851d195
Author: Linda Parsons <lparsonstech@gmail.com>
Date: Thu Apr 30 14:00:19 2015 -0400
Added information for deploying to infrastructure
Note
Make note that the commit immediately prior to the three
erroneously commented commits is 96575c96. We will use
that commit number in a moment...
Looking at the patch information shows these are clearly not all correctly commented:
$ git log --patch
commit 08b888b9dd33f53f0e26d8ff8aab7309765ad0eb
Author: Dave Dittrich <dave.dittrich@gmail.com>
Date: Thu Apr 30 18:35:08 2015 -0700
Fix intersphinx links to use DOCSURL env variable
diff --git a/docs/makedocset b/docs/makedocset
index dafbedb..9adb954 100644
--- a/docs/makedocset
+++ b/docs/makedocset
@@ -7,7 +7,14 @@
# This is useful for building a set of documents that employ
# intersphinx linking, obtaining the links from the co-local
# repositories instead of specified remote locations.
+#
+# To build the docs for a specific server (e.g., when building
+# using a local docker container running Nginx), set the
+# environment variable DOCSURL to point to the server:
+#
+# $ export DOCSURL=http://192.168.99.100:49153
+DOCSURL=${DOCSURL:-http://app.devops.develop:8080/docs/devel}
# Activate dimsenv virtual environment for Sphinx
. $HOME/dims/envs/dimsenv/bin/activate
commit 7f3d0d8134c000a787aad83f2690808008ed1d96
Author: Dave Dittrich <dave.dittrich@gmail.com>
Date: Thu Apr 30 18:34:40 2015 -0700
Fix intersphinx links to use DOCSURL env variable
diff --git a/docs/source/conf.py b/docs/source/conf.py
index 9fdc100..b3cd483 100644
--- a/docs/source/conf.py
+++ b/docs/source/conf.py
@@ -351,13 +351,16 @@ epub_exclude_files = ['search.html']
# If false, no index is generated.
#epub_use_index = True
+os.environ['GITBRANCH'] = "develop"
+
+if os.environ.get('DOCSURL') is None:
+ #os.environ['DOCSURL'] = "file://{}".format(os.environ.get('GIT'))
+ os.environ['DOCSURL'] = "http://app.devops.develop:8080/docs/{}/html/".format(
+ os.environ['GITBRANCH'])
intersphinx_cache_limit = -1 # days to keep the cached inventories (0 == forever)
intersphinx_mapping = {
- 'dimsocd': ("%s/dims/docs/dims-ocd" % os.environ['HOME'],
- ('http://app.devops.develop:8080/docs/develop/html/dims-ocd/objects.inv', None)),
- 'dimsad': ("%s/dims/docs/dims-ad" % os.environ['HOME'],
- ('http://app.devops.develop:8080/docs/develop/html/dims-ad/objects.inv', None)),
- 'dimssr': ("%s/dims/docs/dims-sr" % os.environ['HOME'],
- ('http://app.devops.develop:8080/docs/develop/html/dims-sr/objects.inv', None))
+ 'dimsocd': ("{}/dims-ocd".format(os.environ['DOCSURL']), None),
+ 'dimsad': ("{}/dims-ad".format(os.environ['DOCSURL']), None),
+ 'dimssr': ("{}/dims-sr".format(os.environ['DOCSURL']), None)
}
commit f6f5d868c8ddd12018ca662a54d1f58c150e6364
Author: Dave Dittrich <dave.dittrich@gmail.com>
Date: Thu Apr 30 18:33:59 2015 -0700
Fix intersphinx links to use DOCSURL env variable
diff --git a/docs/makedocs b/docs/makedocs
deleted file mode 100644
index dafbedb..0000000
--- a/docs/makedocs
+++ /dev/null
@@ -1,66 +0,0 @@
-#!/bin/bash -x
-#
-# This script builds multiple Sphinx documents in repos
-# residing (in their current checkout branch/state) in
-# the directory specified by the $GIT environment variable.
-#
-# This is useful for building a set of documents that employ
-# intersphinx linking, obtaining the links from the co-local
-# repositories instead of specified remote locations.
...
The last commit is easy to fix. Just use git commit --amend
and edit the message:
$ git commit --amend
Add DOCSURL selection of where docs reside for intersphinx links
# Please enter the commit message for your changes. Lines starting
# with '#' will be ignored, and an empty message aborts the commit.
#
# Date: Thu Apr 30 18:35:08 2015 -0700
#
# On branch develop
# Your branch is ahead of 'origin/develop' by 3 commits.
# (use "git push" to publish your local commits)
#
# Changes to be committed:
# modified: makedocset
Now we can see the message has been changed, but so has the commit hash!
$ git log --patch
commit 654cb34378cb0a4140725a37e3724b6dcee7aebd
Author: Dave Dittrich <dave.dittrich@gmail.com>
Date: Thu Apr 30 18:35:08 2015 -0700
Add DOCSURL selection of where docs reside for intersphinx links
diff --git a/docs/makedocset b/docs/makedocset
index dafbedb..9adb954 100644
--- a/docs/makedocset
+++ b/docs/makedocset
@@ -7,7 +7,14 @@
# This is useful for building a set of documents that employ
# intersphinx linking, obtaining the links from the co-local
# repositories instead of specified remote locations.
+#
+# To build the docs for a specific server (e.g., when building
+# using a local docker container running Nginx), set the
+# environment variable DOCSURL to point to the server:
+#
+# $ export DOCSURL=http://192.168.99.100:49153
+DOCSURL=${DOCSURL:-http://app.devops.develop:8080/docs/devel}
# Activate dimsenv virtual environment for Sphinx
. $HOME/dims/envs/dimsenv/bin/activate
commit 7f3d0d8134c000a787aad83f2690808008ed1d96
Author: Dave Dittrich <dave.dittrich@gmail.com>
Date: Thu Apr 30 18:34:40 2015 -0700
Fix intersphinx links to use DOCSURL env variable
diff --git a/docs/source/conf.py b/docs/source/conf.py
...
The second commit has the correct comment, but commit f6f5d868c
was simply renaming a file. It got caught up as a commit when
the -a option was given when committing the changed file,
not realizing the renamed file had already been added to the
cache.
To change the message for only commit f6f5d86, start an interactive
rebase at the commit immediately prior to that commit (in this case,
commit 96575c9). Change pick to edit for that commit.
$ git rebase -i 96575c9
edit f6f5d86 Fix intersphinx links to use DOCSURL env variable
pick 7f3d0d8 Fix intersphinx links to use DOCSURL env variable
pick 654cb34 Add DOCSURL selection of where docs reside for intersphinx links
# Rebase 96575c9..654cb34 onto 96575c9 ( 3 TODO item(s))
#
# Commands:
# p, pick = use commit
# r, reword = use commit, but edit the commit message
# e, edit = use commit, but stop for amending
# s, squash = use commit, but meld into previous commit
# f, fixup = like "squash", but discard this commit's log message
# x, exec = run command (the rest of the line) using shell
#
# These lines can be re-ordered; they are executed from top to bottom.
#
# If you remove a line here THAT COMMIT WILL BE LOST.
#
# However, if you remove everything, the rebase will be aborted.
#
# Note that empty commits are commented out
As soon as you exit the editor, Git will begin the rebase and tell you what to do next:
Stopped at f6f5d868c8ddd12018ca662a54d1f58c150e6364... Fix intersphinx links to use DOCSURL env variable
You can amend the commit now, with
git commit --amend
Once you are satisfied with your changes, run
git rebase --continue
Now use git commit --amend to edit the comment:
$ git commit --amend
Rename makedocs -> makedocset
# Please enter the commit message for your changes. Lines starting
# with '#' will be ignored, and an empty message aborts the commit.
#
# Date: Thu Apr 30 18:33:59 2015 -0700
#
# rebase in progress; onto 96575c9
# You are currently editing a commit while rebasing branch 'develop' on '96575c9'.
#
# Changes to be committed:
# renamed: makedocs -> makedocset
#
Finish off by continuing the rebase for the remaining commits.
$ git rebase --continue
Successfully rebased and updated refs/heads/develop.
Now git log shows the correct comments, as well as
new commit hashes:
$ git log
commit 89af6d9fda07276d3cb06dfd2977f1392fb03b25
Author: Dave Dittrich <dave.dittrich@gmail.com>
Date: Thu Apr 30 18:35:08 2015 -0700
Add DOCSURL selection of where docs reside for intersphinx links
commit c2c55ff3dcbf10739c5d86ce8a6192e930ccd265
Author: Dave Dittrich <dave.dittrich@gmail.com>
Date: Thu Apr 30 18:34:40 2015 -0700
Fix intersphinx links to use DOCSURL env variable
commit 2155936ad7e3ae71ef5775b2036a4b6c21a9a86d
Author: Dave Dittrich <dave.dittrich@gmail.com>
Date: Thu Apr 30 18:33:59 2015 -0700
Rename makedocs -> makedocset
commit 96575c967f606e2161033de92dd2dc580ad60a8b
Merge: 1253ea2 dae5aca
Author: Linda Parsons <lparsonstech@gmail.com>
Date: Thu Apr 30 14:00:49 2015 -0400
Merge remote-tracking branch 'origin/develop' into develop
5.5.11. Squashing Commits Before Merging¶
Working on a feature branch for a long time can mean many changes are made. The idea of “commit often” to push code so other team members can review it means that sometimes multiple edits are made (or reverted commits) while debugging something. Or you may make a number of changes that are unrelated to the topic of the feature branch that would be best kept together in a single commit.
It is possible to combine multiple commits into a single commit
using an interactive Git rebase (git rebase -i). The idea is
to interactively select a starting point for the rebase operation,
then using pick and squash to select the proper commits
to keep, and those subsequent commits that should be merged into
the previous commit. If there are dozens of commits, this can
get very complicated, but the idea can be demonstrated with
three simple changes that we wish to turn into just one
merge commit.
Note
This example is being done with a temporary repository that we will make for this purpose, allowing experimentation in a way that will not result in harm to an actual repo.
Start by initializing a temporary repo in /tmp/testing.
[dimsenv] dittrich@ren:/tmp/testing () $ git init .
Initialized empty Git repository in /private/tmp/testing/.git/
We now create three files, each with a numeric name and the corresponding number as the contents of the file, and add each file to the staging area.
[dimsenv] dittrich@ren:/tmp/testing () $ for i in 1 2 3; do echo $i > $i.txt; git add $i.txt; done
[dimsenv] dittrich@ren:/tmp/testing () $ git stat
A 1.txt
A 2.txt
A 3.txt
We now make our initial commit.
[dimsenv] dittrich@ren:/tmp/testing () $ git commit -m 'Initial commit'
[master (root-commit) 3ee79c4] Initial commit
3 files changed, 3 insertions(+)
create mode 100644 1.txt
create mode 100644 2.txt
create mode 100644 3.txt
Now we check out a branch were we will make our changes, before merging
them back into master.
[dimsenv] dittrich@ren:/tmp/testing (master) $ git checkout -b foo
Switched to a new branch 'foo'
We now make three changes (“edits” to two files, and one file deletion).
[dimsenv] dittrich@ren:/tmp/testing (foo) $ echo "22222" > 2.txt
[dimsenv] dittrich@ren:/tmp/testing (foo*) $ git add 2.txt
[dimsenv] dittrich@ren:/tmp/testing (foo*) $ git commit -m "First edit"
[foo 71738c7] First edit
1 file changed, 1 insertion(+), 1 deletion(-)
[dimsenv] dittrich@ren:/tmp/testing (foo) $ echo "1111" > 1.txt
[dimsenv] dittrich@ren:/tmp/testing (foo*) $ git commit -am "Second edit"
[foo 0b0e0a9] Second edit
1 file changed, 1 insertion(+), 1 deletion(-)
[dimsenv] dittrich@ren:/tmp/testing (foo) $ git rm 3.txt
rm '3.txt'
[dimsenv] dittrich@ren:/tmp/testing (foo*) $ git commit -m "Removed file"
[foo 0a522af] Removed file
1 file changed, 1 deletion(-)
delete mode 100644 3.txt
If we now look at the commit history, we see the initial commit where we branched off, and the three change commits.
[dimsenv] dittrich@ren:/tmp/testing (foo) $ git gr
* commit 0a522af0d8c09d206f37b647014628a89070fe94 (HEAD -> foo)
| Author: Dave Dittrich <dittrich@u.washington.edu>
| Date: Mon Sep 5 17:59:36 2016 -0700
|
| Removed file
|
* commit 0b0e0a986e228b177e8775900198c99af80ef5f2
| Author: Dave Dittrich <dittrich@u.washington.edu>
| Date: Mon Sep 5 17:58:34 2016 -0700
|
| Second edit
|
* commit 71738c7b1d2f504110190eaca3c71461e7090cc6
| Author: Dave Dittrich <dittrich@u.washington.edu>
| Date: Mon Sep 5 17:58:19 2016 -0700
|
| First edit
|
* commit 3ee79c4d4455a5517a93ce7e02db88d3db7934f4 (master)
Author: Dave Dittrich <dittrich@u.washington.edu>
Date: Mon Sep 5 17:57:51 2016 -0700
Initial commit
We now start an interactive rebase, referencing the hash of the initial commit (the one right before all of the changes on the branch).
[dimsenv] dittrich@ren:/tmp/testing (foo) $ git rebase -i 3ee79c4
pick 71738c7 First edit
squash 0b0e0a9 Second edit
squash 0a522af Removed file
# Rebase 3ee79c4..0a522af onto 3ee79c4 ( 3 TODO item(s))
#
# Commands:
# p, pick = use commit
# r, reword = use commit, but edit the commit message
# e, edit = use commit, but stop for amending
# s, squash = use commit, but meld into previous commit
# f, fixup = like "squash", but discard this commit's log message
# x, exec = run command (the rest of the line) using shell
#
# These lines can be re-ordered; they are executed from top to bottom.
#
# If you remove a line here THAT COMMIT WILL BE LOST.
#
# However, if you remove everything, the rebase will be aborted.
#
# Note that empty commits are commented out
When you save the file out of the editor, Git will perform the rebase operation:
[detached HEAD 5f90a71] First edit
Date: Mon Sep 5 17:58:19 2016 -0700
3 files changed, 2 insertions(+), 3 deletions(-)
delete mode 100644 3.txt
Successfully rebased and updated refs/heads/foo.
You can now see the commit history has been changed to reflect only one commit (with a combined comment indicating all of the actions from each commit, since we didn’t alter any of the comments while we did the squashing).
[dimsenv] dittrich@ren:/tmp/testing (foo) $ git gr
* commit 5f90a717f96501ba6526a83c107302e0fbc30f10 (HEAD -> foo)
| Author: Dave Dittrich <dittrich@u.washington.edu>
| Date: Mon Sep 5 17:58:19 2016 -0700
|
| First edit
|
| Second edit
|
| Removed file
|
* commit 3ee79c4d4455a5517a93ce7e02db88d3db7934f4 (master)
Author: Dave Dittrich <dittrich@u.washington.edu>
Date: Mon Sep 5 17:57:51 2016 -0700
Initial commit
We can now merge the single resulting commit back into the master
branch.
[dimsenv] dittrich@ren:/tmp/testing (foo) $ git checkout master
Switched to branch 'master'
[dimsenv] dittrich@ren:/tmp/testing (master) $ git merge foo
Updating 3ee79c4..5f90a71
Fast-forward
1.txt | 2 +-
2.txt | 2 +-
3.txt | 1 -
3 files changed, 2 insertions(+), 3 deletions(-)
delete mode 100644 3.txt
Our changes have taken effect:
[dimsenv] dittrich@ren:/tmp/testing (master) $ ls
1.txt 2.txt
[dimsenv] dittrich@ren:/tmp/testing (master) $ cat *
1111
22222
The HEAD has now moved and master and foo are
at the same point. (We can now delete the foo branch.)
[dimsenv] dittrich@ren:/tmp/testing (master) $ git gr
* commit 5f90a717f96501ba6526a83c107302e0fbc30f10 (HEAD -> master, foo)
| Author: Dave Dittrich <dittrich@u.washington.edu>
| Date: Mon Sep 5 17:58:19 2016 -0700
|
| First edit
|
| Second edit
|
| Removed file
|
* commit 3ee79c4d4455a5517a93ce7e02db88d3db7934f4
Author: Dave Dittrich <dittrich@u.washington.edu>
Date: Mon Sep 5 17:57:51 2016 -0700
Initial commit
5.5.12. Merging changes from develop into feature branches to keep up to date¶
When branches live for a long time, and changes occur to what should be
the stable develop branch, those branches start to drift and can
become “broken” because things like hotfixes and new features are not
present on the feature branch. To avoid this, first try to not have
feature branches live for a long time, and second, merge the develop
branch into the feature branches when needed.
Start by reading these pages:
$ git checkout pyes
Switched to branch 'pyes'
Your branch is up-to-date with 'origin/pyes'.
[dittrich@localhost ansible-playbooks (pyes)]$ git rebase dev
First, rewinding head to replay your work on top of it...
Applying: Add pyes pip install to ELK role
Applying: Add marker to prevent re-loading of existing data and don't add Team Cymru data
Applying: Fix bug in demo.logstash.deleteESDB script
Applying: Add feedback message if data already loaded
Applying: Remove debug flag from data pre-load play
Applying: Add demo.firefox.setup changes
Applying: Make default for Kibana be the UFW dataset
Applying: Add curl to base role
Using index info to reconstruct a base tree...
M roles/base-os/tasks/main.yml
Falling back to patching base and 3-way merge...
Auto-merging roles/base-os/tasks/main.yml
Applying: Add elasticutils Python library to ELK role
Applying: Add play to pin Gnome Terminal to panel
Applying: Fix Ansible syntax error re: Gnome Terminal fix
Applying: Fix typo in Gnome Terminal script setup
Applying: Add dconf-tools package for dconf program
Applying: Run Gnome Terminal pin script with sudo
Applying: Fix for dbus-launch failure
Applying: Fix bug in pin-gnome-terminal script re: dconf write operation
Applying: Fix bug in pin-gnome-terminal script
Applying: Fix bug in pin-gnome-terminal re: empty 'value' variable</verbatim>
This is what the pyes branch looked like before:
Branch pyes before rebase
This is what the pyes branch looked like after the rebase:
Branch pyes after rebase
Notice the numbers +23-19 in the after image? We just rebased commits from
the local repo branch develop onto the local repo branch pyes. We
haven’t done anything yet with the remote repo. The numbers mean that after
rebasing to get the missing commits, there are commits that exist on the local
repo that do not exist on the remote repo, and vice-versa.
If we now try to push the pyes branch, Git complains that it can’t because
there are remote changes that are not in the local repo that need to be merged
and checked for possible conflict before the push can proceed.
$ git push
To git@git.devops.develop:/opt/git/ansible-playbooks.git
! [rejected] pyes -> pyes (non-fast-forward)
error: failed to push some refs to 'git@git.devops.develop:/opt/git/ansible-playbooks.git'
hint: Updates were rejected because the tip of your current branch is behind
hint: its remote counterpart. Integrate the remote changes (e.g.
hint: 'git pull ...') before pushing again.
hint: See the 'Note about fast-forwards' in 'git push --help' for details.</verbatim>
Doing a git pull first, then a git push results in a clean rebase of the remote
commits with the local commits (which are now up to date on the pyes feature
branch in relation to the develop branch.)
$ git pull
First, rewinding head to replay your work on top of it...
Applying: Added schema.psl to populate dims database from ops-trust
Applying: added postgres-dims role and files
Using index info to reconstruct a base tree...
M dims-global-server.yml
<stdin>:94: trailing whitespace.
-- Name: plpgsql; Type: EXTENSION; Schema: -; Owner:
<stdin>:101: trailing whitespace.
-- Name: EXTENSION plpgsql; Type: COMMENT; Schema: -; Owner:
<stdin>:210: trailing whitespace.
-- Name: attestations; Type: TABLE; Schema: public; Owner: postgres; Tablespace:
<stdin>:224: trailing whitespace.
-- Name: audit_history; Type: TABLE; Schema: public; Owner: postgres; Tablespace:
<stdin>:237: trailing whitespace.
-- Name: language_skill; Type: TABLE; Schema: public; Owner: postgres; Tablespace:
warning: squelched 50 whitespace errors
warning: 55 lines add whitespace errors.
Falling back to patching base and 3-way merge...
Auto-merging dims-global-server.yml
Applying: Add curl to all hosts in base-os role
Using index info to reconstruct a base tree...
M roles/base-os/tasks/main.yml
Falling back to patching base and 3-way merge...
Auto-merging roles/base-os/tasks/main.yml
Applying: Add curl to base role
Using index info to reconstruct a base tree...
M roles/base-os/tasks/main.yml
Falling back to patching base and 3-way merge...
No changes -- Patch already applied.
[dittrich@localhost ansible-playbooks (pyes)]$ git push
Counting objects: 15, done.
Delta compression using up to 8 threads.
Compressing objects: 100% (14/14), done.
Writing objects: 100% (15/15), 392.72 KiB | 0 bytes/s, done.
Total 15 (delta 9), reused 3 (delta 0)
remote: Running post-receive hook: Tue Nov 4 18:12:01 PST 2014
To git@git.devops.develop:/opt/git/ansible-playbooks.git
9b23575..2166e16 pyes -> pyes</verbatim>
5.5.13. Permanently Removing Files from a Git Repo¶
Before publishing once private repositories on an internal Git repo server to
a public server like GitHub requires making sure that all sensitive
data is premanantly removed from the local repository’s history before
first pushing it to GitHub. Just going a git rm file on a file will remove
it from the working directory, but not from Git’s history. It still exists
in a previous commit in the repo.
A common reason for purging files from the Git history is when someone commits many large binary archive files (e.g., some source packages, operating system installation ISOs, etc). Those files exist in their original distribution servers and mirrors, so there isn’t a need to put them under revision control. They just make the Git repo larger for no good reason.
Danger
Realize that if you are trying to permanently remove secrets, such as passwords or encryption private keys, even doing these steps is not enough. Read what GitHub has to say in the Danger block at the top of their Remove sensitive data page. In short, any time extremely sensitive data (like a password or private key) is published to GitHub, it should be considered compromised, reported to the project lead, and changed as soon as possible.
- How to delete files permanently from your local and remote git repositories, by Anoopjohn, February 20, 2014
- GitHub aaronzirbes/shrink-git-repo.sh (“This script will help you remove large files from your git repo history and shrink the size of your repository.”)
- How to Shrink a Git Repository, by Steve Lorek, May 11, 2012
The page How to Shrink a Git Repository was used successfully to perform
cleanup of a large number of archives that were committed to the
ansible-playbooks repo. The string filename needed to be substituted
with the paths of the files to delete, which were identified by the script
git-find-largest and edited with vi and awk to strip out just the
paths. The following command was then used on the list:
for f in $(cat largest.txt); do \
git filter-branch --tag-name-filter cat \
--index-filter "git rm -r --cached --ignore-unmatch $f" \
--prune-empty -f -- --all; \
done
After that, the steps to clear the cache, do garbage collection and pruning, etc. were followed.
See also GitHub’s Remove sensitive data page to use
either git filter-branch or the BFG Repo-Cleaner to remove
files from a clone of the repo and then push the clean version
to GitHub.
bfg 1.12.15
Usage: bfg [options] [<repo>]
-b, --strip-blobs-bigger-than <size>
strip blobs bigger than X (eg '128K', '1M', etc)
-B, --strip-biggest-blobs NUM
strip the top NUM biggest blobs
-bi, --strip-blobs-with-ids <blob-ids-file>
strip blobs with the specified Git object ids
-D, --delete-files <glob>
delete files with the specified names (eg '*.class', '*.{txt,log}' - matches on file name, not path within repo)
--delete-folders <glob> delete folders with the specified names (eg '.svn', '*-tmp' - matches on folder name, not path within repo)
--convert-to-git-lfs <value>
extract files with the specified names (eg '*.zip' or '*.mp4') into Git LFS
-rt, --replace-text <expressions-file>
filter content of files, replacing matched text. Match expressions should be listed in the file, one expression per line - by default, each expression is treated as a literal, but 'regex:' & 'glob:' prefixes are supported, with '==>' to specify a replacement string other than the default of '***REMOVED***'.
-fi, --filter-content-including <glob>
do file-content filtering on files that match the specified expression (eg '*.{txt,properties}')
-fe, --filter-content-excluding <glob>
don't do file-content filtering on files that match the specified expression (eg '*.{xml,pdf}')
-fs, --filter-content-size-threshold <size>
only do file-content filtering on files smaller than <size> (default is 1048576 bytes)
-p, --protect-blobs-from <refs>
protect blobs that appear in the most recent versions of the specified refs (default is 'HEAD')
--no-blob-protection allow the BFG to modify even your *latest* commit. Not recommended: you should have already ensured your latest commit is clean.
--private treat this repo-rewrite as removing private data (for example: omit old commit ids from commit messages)
--massive-non-file-objects-sized-up-to <size>
increase memory usage to handle over-size Commits, Tags, and Trees that are up to X in size (eg '10M')
<repo> file path for Git repository to clean
5.6. Git and Secrets¶
There are a plethora of ways to deal with secrets in relation to source code in public Git repos.
Some groups chose to separate out the secrets into repos that are not made public (i.e., one public repo without secrets, and one private repo with only the secrets). This adds some complexity and requires multiple Git repository locations that clearly separate the private and public repos.
Other groups may prefer to keep their repositories small in number and simple, using a single directory tree with the secrets being encrypted within that tree. At one extreme of the “secrets in the repo” mechanism require encrypting the entire repo, while at the other end only a limited number of specific secrets are encrypted, leaving the majority of the repository in clear text form.
The DIMS project started out with lots of Git repos that were narrowly focused on specific system components to try to modularize in a way that facilitated integrating open source tools written by other groups. The primary repository that needed secrets was the Ansible playbooks repository.
Attention
Regardless of which mechanism for managing secrets you chose, everyone with Git commit rights must have discipline when it comes to handling secrets. It only takes a few mistakes to cause a lot of cleanup headaches, or for an accidental commit followed by a missed review and unintended push to result in a password or key exposure crisis.
The DIMS project ran into this problem many times, with accidental commits including private keys, passwords, and unredacted sample data from production systems. It wasn’t until the repos were going to be made public that reviews identified several of these mistakes, causing long delays while cleanup activities were added to code completion tasks.
There is a cost/benefit tradeoff that must be made between using more than just one shared “development” repository location (to more closely vet and control commits to the “official” repository location) vs. the time and effort required to sanitize accidentally committed secrets and simultaneously delete all clones at the same time to prevent the secrets being accidentally pushed back into the repo.
The two mechanisms first tested by the DIMS project were:
5.6.1. Ansible Vault¶
Ansible Vault is a command-line tool provided by Ansible. It allows for application of encryption at a very granular level.
Vault is a password-based encryption system. This password can be stored in a file, but it must be shared to every user who is allowed access to the secret data files that are encrypted. This means there is still one step of having to figure out how to share the vault password.
Once the password is known by all parties, the process is pretty simple. To create a file you want to be encrypted,
$ ansible-vault create --vault-password-file=$PASS_FILE vaultfile.yml
To view the file, without being able to edit it,
$ ansible-vault view --vault-password-file=$PASS_FILE vaultfile.yml
To edit the file,
$ ansible-vault edit --vault-password-file=$PASS_FILE vaultfile.yml
To encrypt a file,
$ ansible-vault encrypt --vault-password-file=$PASS_FILE newvaultfile.yml
To decrypt a file,
$ ansible-vault decrypt --vault-password-file=$PASS_FILE newvaultfile.yml
When you commit a vault-protected file, it will be the encrypted file that is
committed to Git. Thus, if you decrypt a file to view it, you’ll have to
encrypt it again, and the file will change, so you’ll have to commit it
again.
If you need to rekey a file,
$ ansible-vault rekey --new-vault-password-file=$NEW_PASS_FILE rekeyvaultfile.yml
To use Ansible to share secret information, one way is by copying an entire file of secrets. First, you must load a file with the secret information. This is generally done by creating a dictionary of information, including the destination of the secret file, the owner and group and mode of the file, as well as the actual contents of the file. You then run a task to load the secret file, which is decrypted with the Vault password and read by Ansible, then the information from that file is used to create the new file on the target machine.
Warning
One important thing to note is that you must use the no_log module in these
types of tasks to keep Ansible from printing the secret information in the
output of running plays.
- name: Load secret password file
include_vars: "vault.yml"
no_log: true
when: ansible_os_family == "Debian"
tags: [ ansible-server ]
- name: Copy secret password file
copy:
dest: "{{ item.key }}"
content: "{{ item.value.content }}"
owner: "{{ item.value.owner }}"
group: "{{ item.value.group }}"
mode: "{{ item.value.mode }}"
with_dict: "{{ vault_password }}"
when: ansible_os_family == "Debian"
no_log: true
tags: [ ansible-server ]
The following is an example of the vault.yml file:
---
# File: unencrypted version of vault.yml
password:
/home/ansible/pass.txt
owner: "ansible"
group: "ansible"
mode: "u=r,go="
content: |
Secretsecretsecret
# eof
Additionally, you can use vault to keep variables secret that may not be used to create a whole file, like an SSH key. For example, a username and password might be needed in a service’s configuration file. All you need to do is create a Vault-encrypted file with those secrets, include the secret vars file in a task before needing to use those secret variables (say, in a template), and then the secret will be populated on the target machine.
However, unless using the ansible-vault view command, the secret
variables file is encrypted, so it isn’t searchable. A solution to this
problem is to include a secret variable in a “normal” vars file, but
don’t include the actual secret there–set that variable to another
variable.
Let’s say we need a username and password for Service X that is going to
run on several machines in deployment local. In our group_vars file
for this deployment, deployment-local.yml, we’d define the
username and password variables for Service X as follows:
...
serviceXUsername: "{{ vault_serviceXUsername }}"
serviceXPassword: "{{ vault_serviceXPassword }}"
...
We would use the ansible-vault create command to then define the
vault_* variables with their actual secret data, as follows:
---
# File: unencrypted version of deployment-local-vault.yml
vault_serviceXUsername: "secretUsername"
vault_serviceXPassword: "secretPassword"
# eof
Now, the secret variables file has to be included before any variable defined within it is used:
- name: Load deployment secret variables file
include_vars: "../../../inventory/group_vars/deployment-local-vault.yml"
no_log: true
when: ansible_os_family == "Debian"
tags: [ ansible-server ]
- name: Use secret variables
template: "src=test-secret.yml dest=/etc/test-secret.yml owner=root group=root mode={{ mode_0644 }}"
no_log: true
sudo: yes
when: ansible_os_family == "Debian"
tags: [ ansible-server ]
Helpful Links:
- http://docs.ansible.com/ansible/playbooks_best_practices.html#variables-and-vaults
- https://www.onwebsecurity.com/devops/safely-storing-ansible-playbook-secrets
- https://dantehranian.wordpress.com/2015/07/24/managing-secrets-with-ansible-vault-the-missing-guide-part-1-of-2/
- https://dantehranian.wordpress.com/2015/07/24/managing-secrets-with-ansible-vault-the-missing-guide-part-2-of-2/
- https://serversforhackers.com/video/ansible-using-vault
5.6.2. git-crypt¶
Another granular approach we looked at was git-crypt. This integrates
encryption using GPG keys within the git ecosystem. It allows
for encryption by file, rather than repo. In addition, since the encryption
integrated in the git ecosystem, you don’t have to use special
commands to view or edit encrypted files; encrypted files are decrypted
when a repo is checked out and encrypted when committed.
The trouble we have found is a problem many projects will have, especially open source ones. The files are encrypted with the GPG keys available at the time of a given file’s encryption. This means that if other project members join after a file is encrypted, that file will have to be re-encrypted once the new member’s GPG key has been integrated. All encrypted files would ahve to be ID’d and then re-encrypted. Additionally, this also compounds the key revocation problem as whoever has a private key to decrypt the files will still be able to see the old commits. The files can’t just be re-encrypted, all the secrets they contain must be changed.
At this time, we have chosen to stick with Vault over git-crypt
for the reasons listed above.
5.6.3. Git and Unix permissions¶
A final issue that must be known and kept in mind is the limitation in
Git’s ability to properly handle Unix permission masks. Unix permission
masks (or umask) are bit masks that handle multiple permissions
(i.e., read, write, and execute) for multiple groups
(i.e., owner, group, and other), along with some other
permission bits (setgid, setuid, and sticky bits).
Git only pays attention to the execute permissions, and does so
in a limited way. That means a file may have a mode 0755 (write
permission only for user, but universal read and execute permission),
or it may have a mode 0644 (same as above, but no execute permission
for anyone).
To see this problem in action, we will use the keys.host.create script
to generate some SSH key pairs. SSH only allows keys to be used if
they have no read permission for other, so it generates keys
with permission mask 0600 (see highlighted lines):
$ keys.host.create -d . -p EXAMPLE
$ ls -l
total 40
-rw-rw-r-- 1 dittrich dittrich 358 Mar 13 12:17 key_fingerprints.txt
-rw-rw-r-- 1 dittrich dittrich 1304 Mar 13 12:17 known_hosts.add
-rw------- 1 dittrich dittrich 668 Mar 13 12:17 ssh_host_dsa_key
-rw-r--r-- 1 dittrich dittrich 616 Mar 13 12:17 ssh_host_dsa_key.pub
-rw------- 1 dittrich dittrich 365 Mar 13 12:17 ssh_host_ecdsa_key
-rw-r--r-- 1 dittrich dittrich 282 Mar 13 12:17 ssh_host_ecdsa_key.pub
-rw------- 1 dittrich dittrich 432 Mar 13 12:17 ssh_host_ed25519_key
-rw-r--r-- 1 dittrich dittrich 112 Mar 13 12:17 ssh_host_ed25519_key.pub
-rw------- 1 dittrich dittrich 1675 Mar 13 12:17 ssh_host_rsa_key
-rw-r--r-- 1 dittrich dittrich 408 Mar 13 12:17 ssh_host_rsa_key.pub
Now, add the keys to Git and watch the permissions that Git gives to those files:
$ git add .
$ git commit -m 'Add keys'
[master (root-commit) 47f872b] Add keys
10 files changed, 66 insertions(+)
create mode 100644 keys/key_fingerprints.txt
create mode 100644 keys/known_hosts.add
create mode 100644 keys/ssh_host_dsa_key
create mode 100644 keys/ssh_host_dsa_key.pub
create mode 100644 keys/ssh_host_ecdsa_key
create mode 100644 keys/ssh_host_ecdsa_key.pub
create mode 100644 keys/ssh_host_ed25519_key
create mode 100644 keys/ssh_host_ed25519_key.pub
create mode 100644 keys/ssh_host_rsa_key
create mode 100644 keys/ssh_host_rsa_key.pub
As you can see, all files that did not have the execute bit got a
permissions mask of 100644, so all files that were 0600 will end up
being pulled with a permissions mask of 0644. SSH will not allow a
permission mask of 0644 on private keys, so if these were user keys SSH
would not allow them to be used. To ensure that checking out or pulling these
files will still work requires an extra step to fix these permissions, which is
a little complicated and involves the use of Git hooks.
The simplest method is to use the public/private pairing to identify all files
that end in .pub and change the mode to 0600 on the file with the
.pub extension stripped (i.e., the associated private key). A script to do
this may look something like this:
#!/bin/bash
echo "[+] Verifying private key permissions and correcting if necessary"
find * -type f -name '*.pub' |
while read pubkey; do
privkey=$(dirname $pubkey)/$(basename $pubkey .pub)
if [[ -f $privkey ]]; then
mode=$(stat -c %a $privkey)
if [[ $? -ne 0 ]]; then
echo "[-] Failed to get mode for $privkey"
elif [[ "$mode" != "600" ]]; then
echo "[+] Changing mode $mode to 600 on file $privkey"
chmod 600 $privkey
fi
fi
done
exit 0
Attention
You cannot add files in the .git/hooks directory, where hooks are
found for execution by Git, to Git tracking. The .git directory
is _not_ part of the Git repository commit structure. You can add
a directory named hooks/ at the top level of the tracked repo
and create links into the .git/hooks directory. This has to
be done at least once per clone of the repo, which is up to the
person doing the clone to perform manually (or to use wrapper
scripts around Git that do this on the initial clone operation).
Here is a Makefile that automates this process:
.PHONY: all
all: install-hooks
.PHONY: install-hooks
install-hooks:
@(cd hooks; find * -type f -o -type l 2>/dev/null) | \
while read hook; do \
echo "[+] Installing .git/hooks/$$hook"; \
ln -sf ../../hooks/$$hook .git/hooks/$$hook; \
done
To preserve the actual permission masks in a general way for all files being committed to Git is much more complicated and goes beyond the needs of this particular issue. Examples of how to do this are found in the following references, or search for other options.
